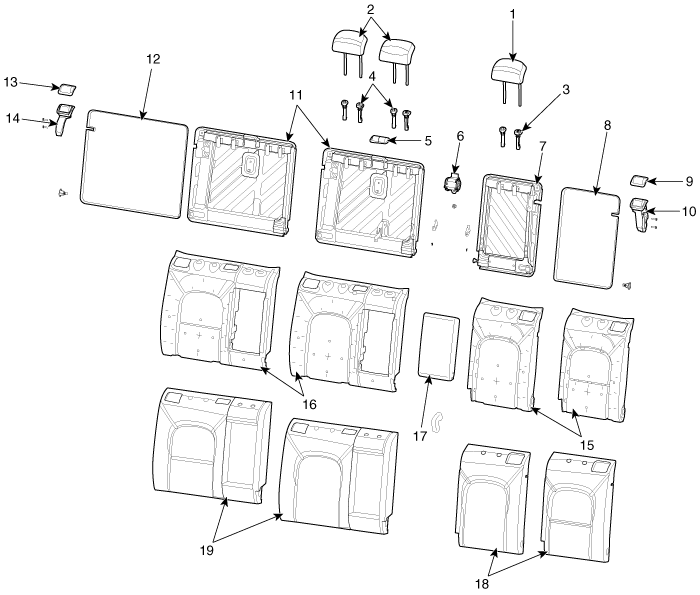

Components (1)
[Rear seat back]
(5Door)

1. Rear seat headrest [LH]

2. Rear seat headrest [RH]

3. Rear seat headrest guide [LH]

4. Rear seat headrest guide [RH]

5. Rear seat belt outlet cover

6. Rear center seat belt retractor

7. Rear seat back structure [LH]

8. Rear seat back panel carpet [LH]

9. Rear seat latch cover [LH]

10. Rear seat latch assembly [LH]

11. Rear seat back structure [RH]

12. Rear seat back panel carpet [RH]

13. Rear seat latch cover [RH]

14. Rear seat latch assembly [RH]

15. Rear seat back pad [LH]

16. Rear seat back pad [RH]

17. Rear seat armrest assembly

18. Rear seat back cover [LH]

19. Rear seat back cover [RH]

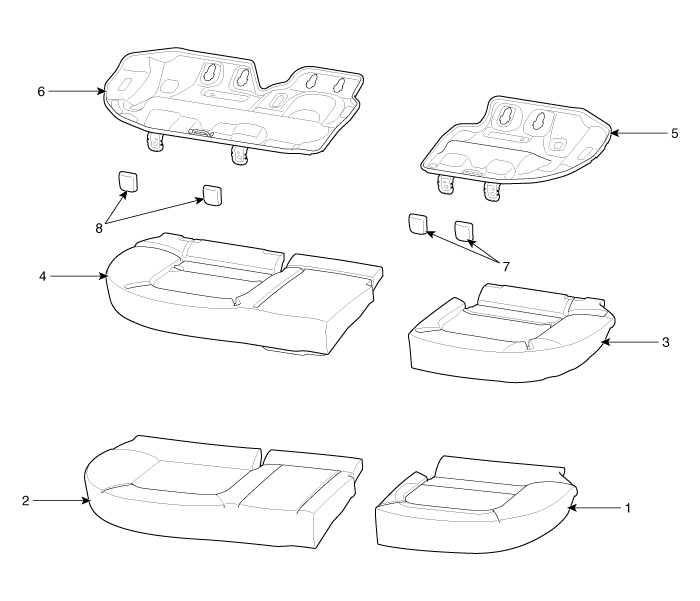

Components (2)
[Rear seat cushion]
(5Door)

1. Rear seat cushion cover [LH]

2. Rear seat cushion cover [RH]

3. Rear seat cushion pad [LH]

4. Rear seat cushion pad [RH]

5. Rear seat cushion frame [LH]

6. Rear seat cushion frame [RH]

7. Rear seat cushion mounting cover [LH]

8. Rear seat cushion mounting cover [RH]

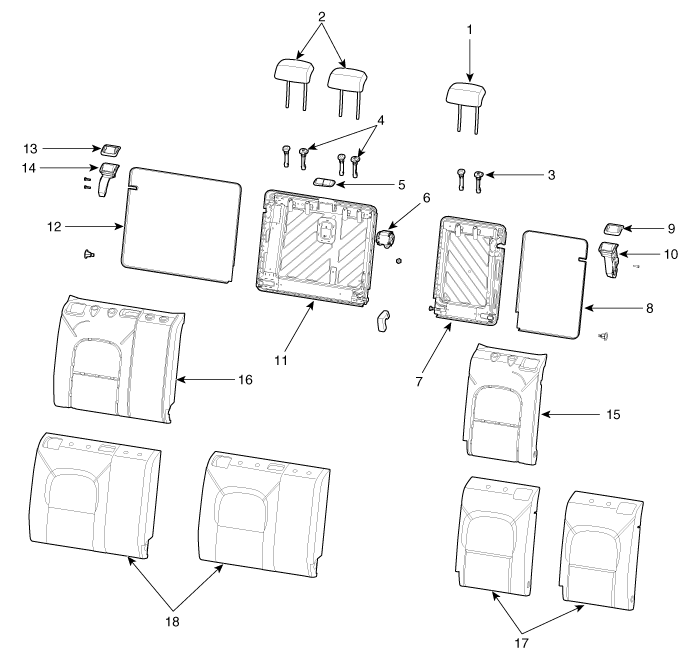

Components (3)
[Rear seat back]
(3Door)

1. Rear seat headrest [LH]

2. Rear seat headrest [RH]

3. Rear seat headrest guide [LH]

4. Rear seat headrest guide [RH]

5. Rear seat belt outlet cover

6. Rear center seat belt retractor

7. Rear seat back structure [LH]

8. Rear seat back panel carpet [LH]

9. Rear seat latch cover [LH]

10. Rear seat latch assembly [LH]

11. Rear seat back structure [RH]

12. Rear seat back panel carpet [RH]

13. Rear seat latch cover [RH]

14. Rear seat latch assembly [RH]

15. Rear seat back pad [LH]

16. Rear seat back pad [RH]

17. Rear seat back cover [LH]

18. Rear seat back cover [RH]

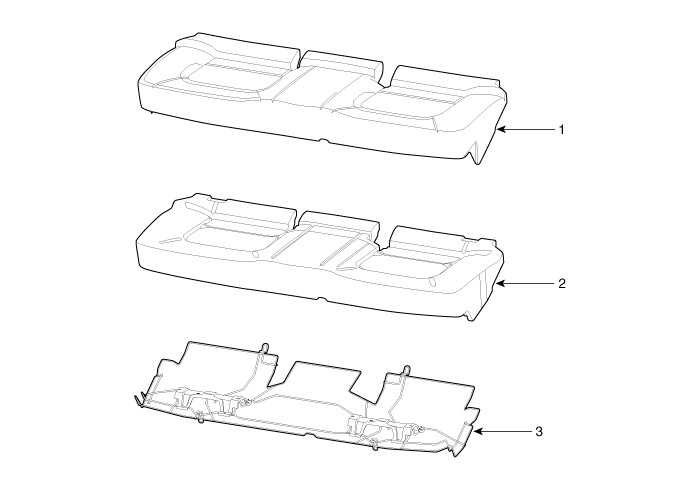

Components (4)
[Rear seat cushion]
(3Door)

1. Rear seat cushion cover

2. Rear seat cushion pad

3. Rear seat cushion frame assembly
