09200-38001 / 3N000

Engine support fixture

(Beam)

Removal and installation of the transaxle.

Use this adapter (SST No. : 09200-4X000) with the supporter (SST No. : 09200-2S100, 2S200).

※Permit operating with 09200-38001.

09200-2S100

Engine support fixture

(Supporter)

Removal and installation of the transaxle.

Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S200) and adapter (SST No. : 09200-4X000).

09200-2S200

Engine support fixture

(Supporter)

Removal and installation of the transaxle.

Use this beam (SST No. : 09200-38001/3N000) with the adapter (SST No. : 09200-4X000) and supporter (SST No. : 09200-2S100).

09200-4X000

Engine support fixture (Adapter)

Removal and installation of the transaxle.

Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S100, 09200-2S200).

09431-26100

Oil seal installer

Installation of transaxle case oil seal.

[Using with handle (SST No.:09231-H1100)]

09231-H1100

Bar

Installation of transaxle case oil seal.

[Using with oil seal installer (SST No.:09452-26100)]

1. 09200-3N000(Main bar)

2. 09200-3N000(Sub bar)

3. 09200-3N000(Handle)

4. 09200-3N000(Stopper)

5. 09200-3N000(Bolt-1)

6. 09200-4X000 (Adapter)

7. 09200-2S100(Supporter)

8. 09200-2S200(Supporter)

9. 09200-3N000(Nut)

10. 09200-3N000(Snap ring)

11. 09200-3N000(Sub fixture)

12. 09200-3N000(Stopper)

13. 09200-3N000(Nut)

14. 09200-2S100(Spacer)

15. 09200-2S100(Sub fixture)

16. 09200-2S100(Nut)

17. 09200-3N000(Pin)

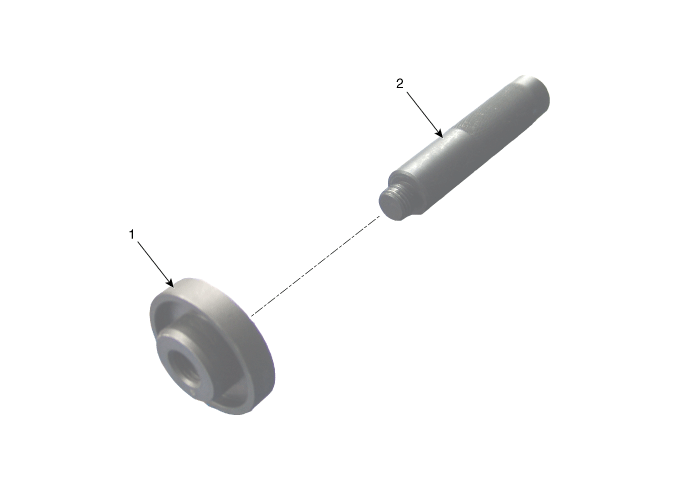

1. 09431-26100 (Oil seal installer)

2. 09231-H1100 (Bar)
