6.
Remove the intercooler inlet hoses & pipe (A).
Tightening torque
Bolt :
19.6 ~ 26.4 N.m (2.0 ~ 2.7 kgf.m, 14.4 ~ 19.5 lb-ft)
Clamp :
4.9 ~ 6.8 N.m (0.5 ~ 0.7 kgf.m, 3.6 ~ 5.0 lb-ft)
Use fender covers to avoid damaging painted surfaces.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
Mark all wiring and hoses to avoid misconnection.
For release the fuel system pressure before remove the engine assembly, start the engine without fuel pump relay. And then turn off the ignition switch after engine stops.
Remove the engine cover.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner")
Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "Engine Room Under Cover")
Drain the engine coolant.
(Refer to Cooling System - "Coolant")
Remove the intercooler inlet hoses & pipe (A).
Tightening torque
Bolt :
19.6 ~ 26.4 N.m (2.0 ~ 2.7 kgf.m, 14.4 ~ 19.5 lb-ft)
Clamp :
4.9 ~ 6.8 N.m (0.5 ~ 0.7 kgf.m, 3.6 ~ 5.0 lb-ft)
Remove the intercooler outlet hose (A).
Tightening torque:
4.9 ~ 6.8 N.m (0.5 ~ 0.7 kgf.m, 3.6 ~ 5.0 lb-ft)
Disconnect the radiator upper hose (B).
Disconnect the radiator lower hose (A).

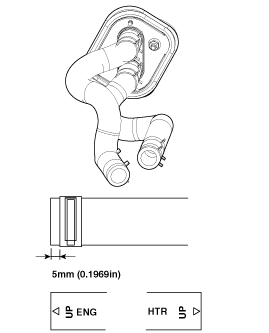

When installing radiator hoses, install as shown in illustrations.
Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heating, Ventilation Air conditioning - "Compressor")
Remove the transaxle wire harness connectors and control cable from the transaxle.
(Refer to Manual Tranxaxle System - "Manual Transaxle")
Disconnect the brake booster vacuum hose (A) and the heater hoses (B).
When installing the heater hoses, install as shown in illustrations.
Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).
Remove the engine wirings from the engine room.
Remove the (+) cable nut (A).
Tightening torque:
6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)
Disconnect the EMS block (B).
Disconnect the fuse box connector (C).
Remove the engine wirings from the engine room.
Remove the front muffler.
(Refer to Intake And Exhaust System - "Muffler")
Remove the roll rod bracket (A).
Tightening torque
Nut (B) :
107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)
Bolts (C) :
49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
Remove the roll rod mounting support bracket (A).
Tightening torque:
49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)
Remove the sub frame.
(Refer to Suspension system - "Sub frame")
After removing the sub frame mounting bolt, the engine and transaxle assembly may fall downward, and so support them securely with floor jack.
Verify that the hoses and connectors are disconnected before removing the engine and transaxle assembly.
Disconnect the engine ground cable (A).
Tightening torque :
10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~ 10.1 lb-ft)
Remove the engine mounting support bracket (A).
Tightening torque
Nut (B):
88.3 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.5 lb-ft)
Bolt and nuts (C):
58.8 ~ 73.5 N.m (6.0 ~ 7.5 kgf.m, 43.4 ~ 54.2 lb-ft)
Disconnect the transaxle ground line (A).
Remove the service cover (A).
Remove the transaxle mounting bolts (A).
Tightening torque :
88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.5 lb-ft)
Remove the engine and transaxle assembly (A) by lifting vehicle.
When remove the engine and transaxle assembly, be careful not to damage any surroundings parts or body components.
Installation is in the reverse order of removal.
Perform the following :
Adjust a shift cable.
Adjust the throttle cable.
Refill engine with engine oil.
Refill a transaxle with fluid.
Refill power steering fluid.
Refill a radiator and a reservoir tank with engine coolant.
Place a heater control knob on "HOT" position.
Clean battery posts and cable terminals and assemble.
Inspect for fuel leakage.
After assemble the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
Bleed air from the cooling system.
Start engine and let it run until it warms up. (until the radiator fan operates 3 or 4 times.)
Turn Off the engine. Check the level in the radiator, add coolant if needed. This will allow trapped air to be removed from the cooling system.
