3.
Connector (A) After removing the new receiver (B), must be replaced.
When the receiver first arrives for replacement:
It will be in Virgin State.
It will not be configured for any specific platform.
It will not have any sensor ID's memorized.
It is important to make sure that the correct receiver is used to replace the faulty part i.e.
Disconnect the negative (-) battery cable.
Remove the main crash pad Assembly.
<a href="content.asp?vehicletype=Passenger&mfrcode=KM&area=KME&langcode=ENG&modelid=JD12&modelyr=2013&mmctype=bd&mmcid=4&group=SHOP&pdftype=&cat1=2013+%3E+G+1%2E6+MPI&ec=&firstnodedesc=Body+%28Interior+and+Exterior%29&sitinfolist=91%5E9154%5E91540150%5Enone%5E801%5E6%5EENG%5EKM%5EJD12%5E2013%5Ebd%5E4%5Enone%5Enone%5Enone%5ESHOP%5E%24"target="_blank">(Refer to Body (Interior and Exterior) - "Main Crash Pad Assembly")</a>
Connector (A) After removing the new receiver (B), must be replaced.
Install in the reverse order of removal.
Re-connect battery and turn Ignition on.

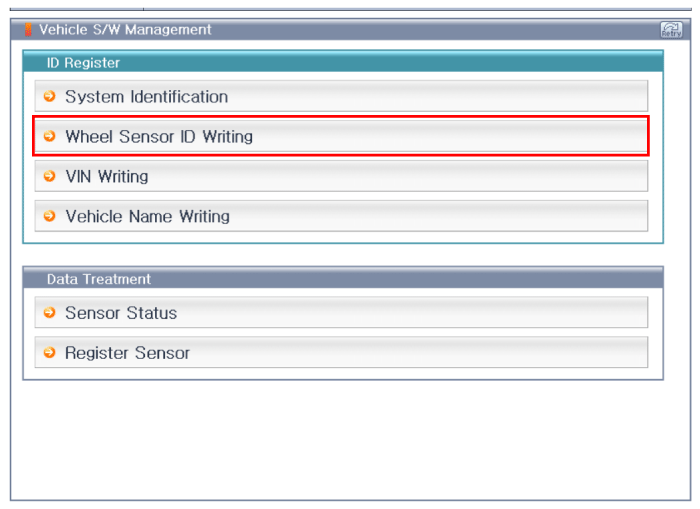

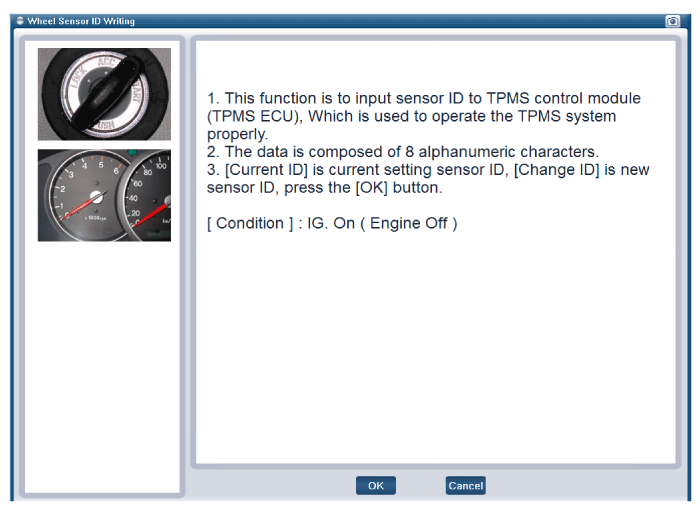

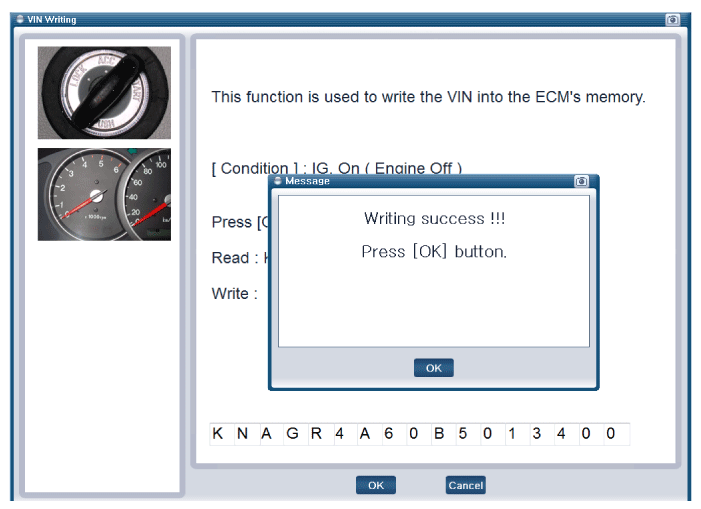

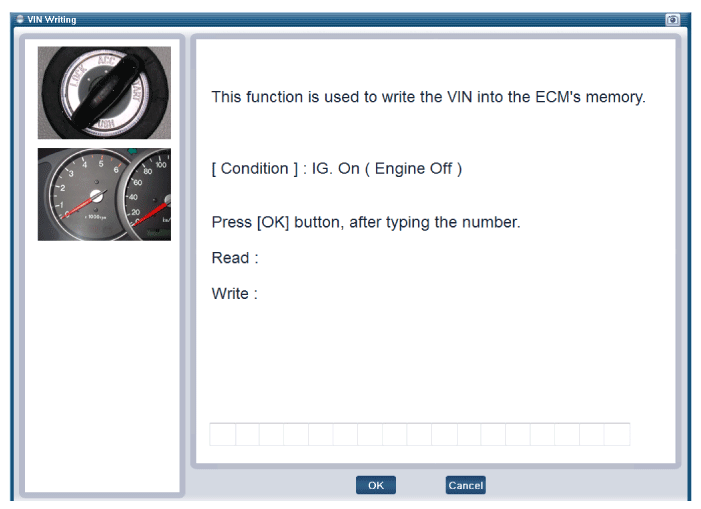

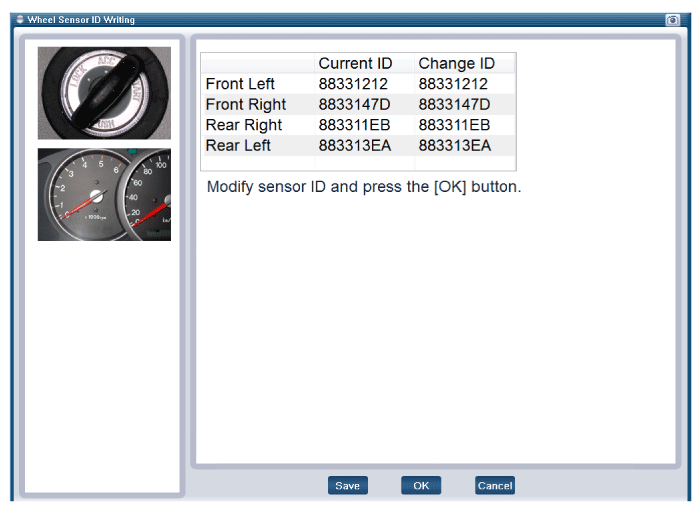

After replacing the receiver, learn by using self-diagnosis device(GDS).
As manual for diagnosis methods by using diagnosis device, the main contents are as follows:
Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.
Check the specifications for the vehicle and the selected item option, press the OK button and enter is completed.

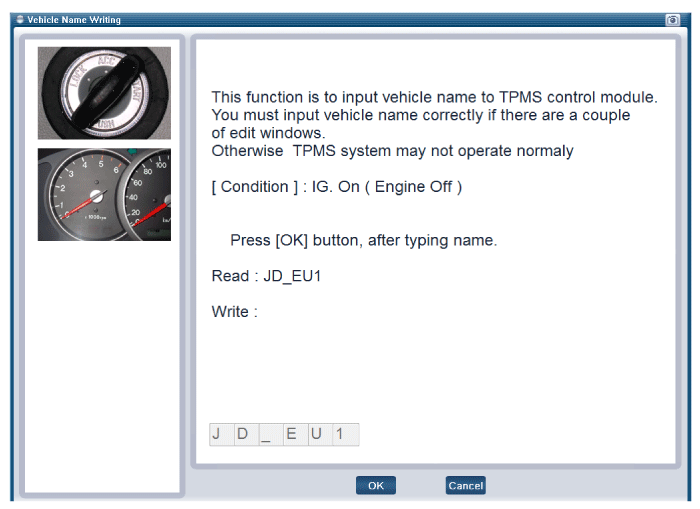

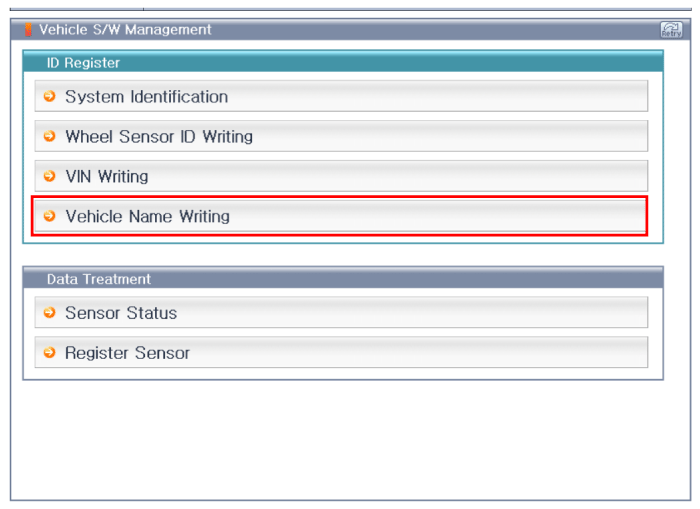

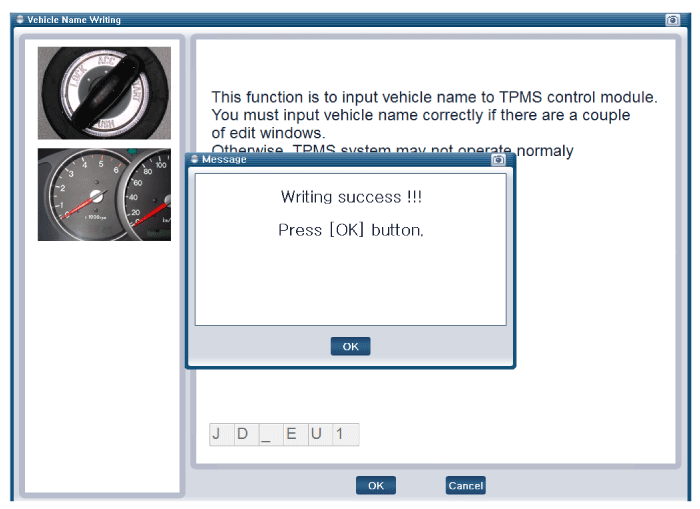

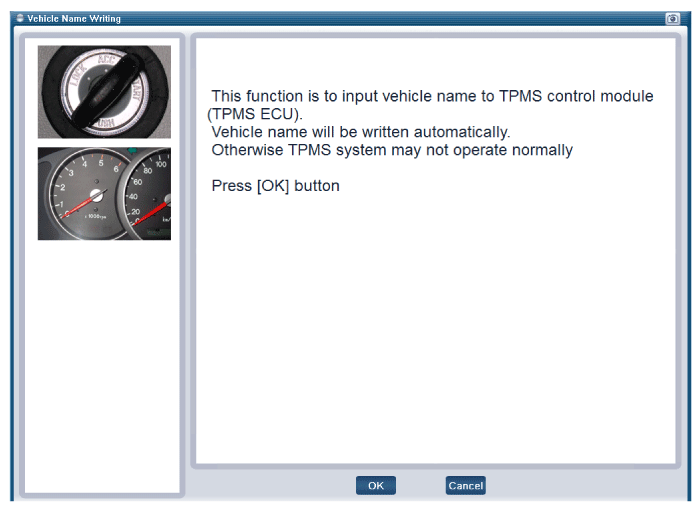

When you input the vehicle name, check the tire inch and exactly input inch option to device.
General specifications and 16 inches fuel pack.
15 inch fuel pack specifications.
