13666424

Components

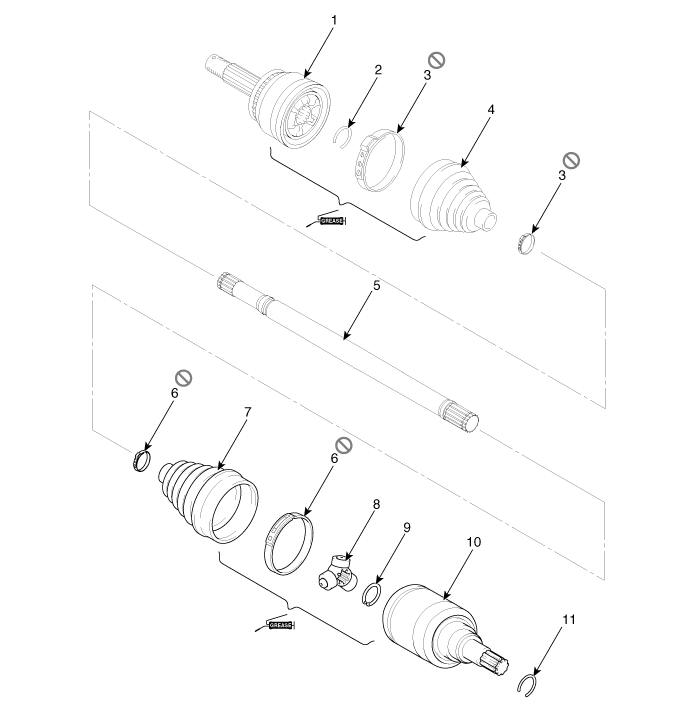

[LH]

1. BJ assembly

2. BJ circlip

3. BJ boot band

4. BJ boot

5. Shaft

6. TJ boot band

7. TJ boot

8. Spider assembly

9. Retainer ring

10. TJ housing

11. Housing circlip

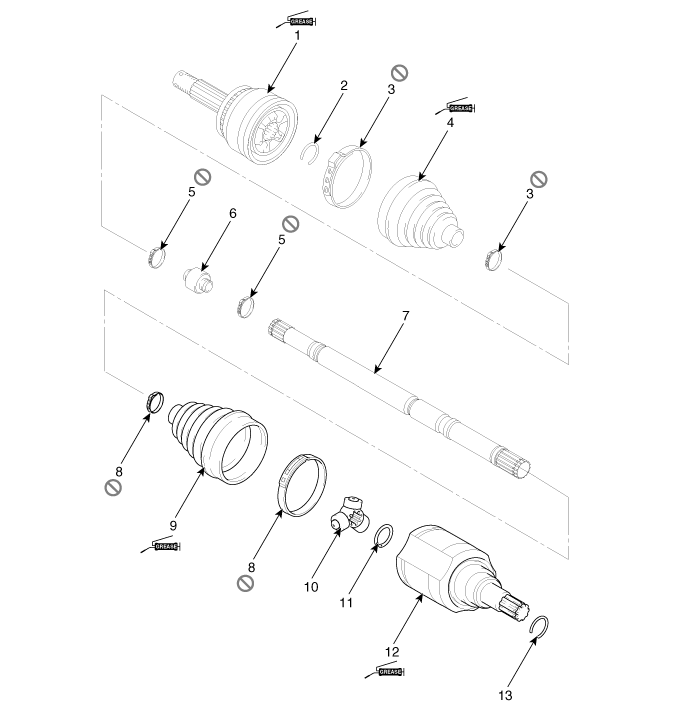

[RH]

1. BJ assembly

2. BJ circlip

3. BJ boot band

4. BJ boot

5. Dynamic damper band

6. Dynamic damper

7. Shaft

8. TJ boot band

9. TJ boot

10. Spider assembly

11. Retainer ring

12. TJ housing

13. Housing circlip
