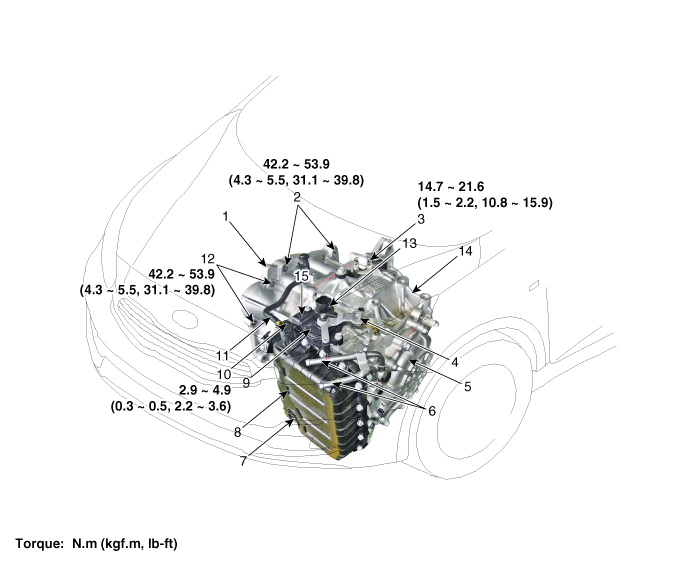

Components Location

1. Converter housing

2. Automatic transaxle upper mounting bolt

3. Shift cable bracket

4. Manual control lever

5. Rear cover

6. Oil cooler tube

7. Oil level plug

8. Valve body cover

9. Inhibitor switch

10. Injection hole(eyebolt)

11. Air breather hose

12. Starter motor mounting bolt

13. Solenoid valve connector

14. Automatic transaxle case

15. Inhibitor switch connector
