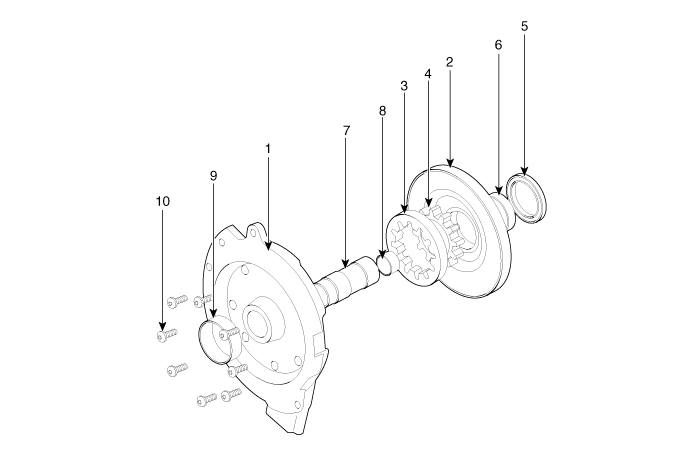

Components

1. Oil pump cover

2. Oil pump housing

3. Driven gear

4. Drive gear

5. Oil seal

6. Bushing-housing

7. Reaction shaft

8. Bushing-reaction shaft

9. Sleeve

10. Bolt

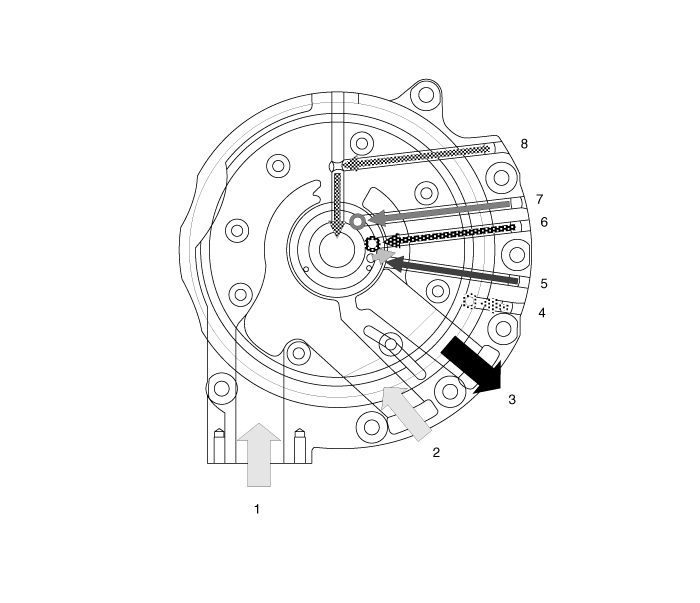

Oil Pump Operation Flow

1. Inhale(Oil filter)

2. Inhale(Valve body)

3. Outlet

4. 26/B operation pressure

5. 35R/C operation pressure

6. Lubrication

7. Line up clutch operation pressure

8. Line up clutch cancellation
