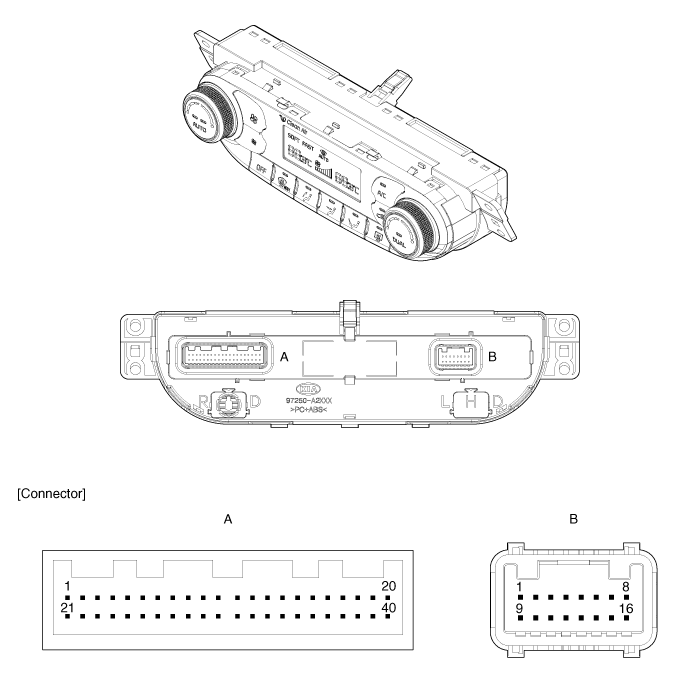

Connector | Pin No. | Function | Connector | Pin No. | Function |
A | 1 | Tail Lamp (+) | A | 29 | Humidity (PWM) |
2 | Sensor REF (+5V) | 30 | Photo Sensor (-) - Left | ||
3 | C-CAN (High) | 31 | - | ||
4 | C-CAN (Low) | 32 | Photo Sensor (-) - Right | ||
5 | Mode Actuator (Vent) | 33 | ECV + | ||
6 | Mode Actuator (Defog) | 34 | ECV - (Ground) | ||
7 | Mode Actuator Feedback | 35 | Fet (Gate) | ||
8 | Intake Actuator (Fresh) | 36 | Duct Sensor (+) - Vent | ||
9 | Intake Actuator (Recirculation) | 37 | Duct Sensor (+) - Floor | ||
10 | Intake Actuator Feedback | 38 | - | ||
11 | K-Line | 39 | - | ||
12 | HTD (Rear Defrost Indicator) | 40 | - | ||
13 | Rear Defog Switch | B | 1 | Ground | |
14 | Temperature Actuator (Cool) - Driver | 2 | Sensor Ground | ||
15 | Temperature Actuator (Warm) - Driver | 3 | Fet (Drain Feedback) | ||
16 | Temperature Actuator Feedback - Driver | 4 | Ionizer Diagnosis | ||
17 | - | 5 | Clean Signal | ||
18 | - | 6 | ION Signal | ||
19 | - | 7 | Ignition 1 | ||
20 | Rheostat (ILL-) | 8 | Ignition 2 | ||
21 | Detent Out (+) | 9 | Ground | ||
22 | - | 10 | - | ||
23 | PTC Relay | 11 | Temperature Actuator Feedback - Passenger | ||
24 | - | 12 | Temperature Actuator (Cool) - Passenger | ||
25 | - | 13 | Temperature Actuator (Warm) - Passenger | ||
26 | - | 14 | Blower Motor (+) | ||
27 | Ambient Temperature Sensor (+) | 15 | - | ||
28 | Evaporator Temperature Sensor (+) | 16 | Battery |
Connector | Pin No. | Function | Connector | Pin No. | Function |
A | 1 | Tail Lamp (+) | A | 29 | Humidity (PWM) |
2 | Sensor REF (+5V) | 30 | Photo Sensor (-) - Left | ||
3 | C-CAN (High) | 31 | - | ||
4 | C-CAN (Low) | 32 | Photo Sensor (-) - Right | ||
5 | Mode Actuator (Vent) | 33 | ECV + | ||
6 | Mode Actuator (Defog) | 34 | ECV - (Ground) | ||
7 | Mode Actuator Feedback | 35 | Fet (Gate) | ||
8 | Intake Actuator (Fresh) | 36 | Duct Sensor (+) - Vent | ||
9 | Intake Actuator (Recirculation) | 37 | Duct Sensor (+) - Floor | ||
10 | Intake Actuator Feedback | 38 | - | ||
11 | K-Line | 39 | - | ||
12 | HTD (Rear Defrost Indicator) | 40 | - | ||
13 | Rear Defog Switch | B | 1 | Ground | |
14 | Temperature Actuator (Cool) - Driver | 2 | Sensor Ground | ||
15 | Temperature Actuator (Warm) - Driver | 3 | Fet (Drain Feedback) | ||
16 | Temperature Actuator Feedback - Driver | 4 | Ionizer Diagnosis | ||
17 | - | 5 | Clean Signal | ||
18 | - | 6 | ION Signal | ||
19 | - | 7 | Ignition 1 | ||
20 | Rheostat (ILL-) | 8 | Ignition 2 | ||
21 | Detent Out (+) | 9 | Ground | ||
22 | - | 10 | - | ||
23 | PTC Relay 2 | 11 | Temperature Actuator Feedback - Passenger | ||
24 | PTC Relay 3 | 12 | Temperature Actuator (Cool) - Passenger | ||
25 | PTC ON Signal | 13 | Temperature Actuator (Warm) - Passenger | ||
26 | - | 14 | Blower Motor (+) | ||
27 | Ambient Temperature Sensor (+) | 15 | - | ||
28 | Evaporator Temperature Sensor (+) | 16 | Battery |
