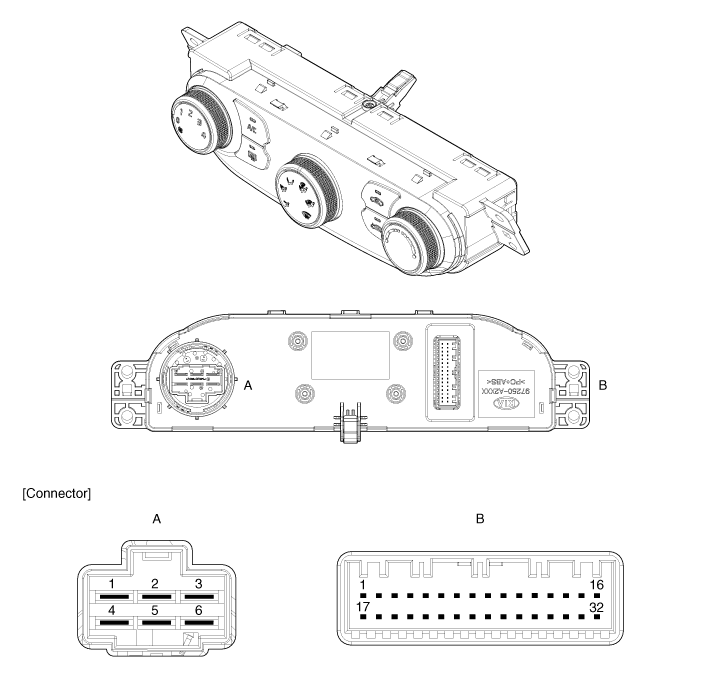

Connector | Pin No. | Gasoline | Diesel |
Function | Function | ||
A | 1 | Low | Low |
2 | Common | Common | |
3 | High | High | |
4 | Middle Low | Middle Low | |
5 | Middle High | Middle High | |
6 | Ground | Ground | |
B | 1 | Battery | Battery |
2 | Ignition 2 | Ignition 2 | |
3 | Ignition 1 | Ignition 1 | |
4 | HTD (Rear Defrost Indicator) | HTD | |
5 | Detent Out (+) | Detent Out (+) | |
6 | Evaporator Temperature Sensor (+) | Evaporator Temperature Sensor (+) | |
7 | Ambient Temperature Sensor (+) | Ambient Temperature Sensor (+) | |
8 | Mode Actuator Feedback | Mode Actuator Feedback | |
9 | Temperature Actuator Feedback | Temperature Actuator Feedback | |
10 | Intake Actuator Feedback | Intake Actuator Feedback | |
11 | Rear Defog Switch | Rear Defog Switch | |
12 | - | PTC ON Signal | |
13 | PTC Relay | PTC Relay 2 | |
14 | _ | PTC Relay 3 | |
15 | Sensor Ground | Sensor Ground | |
16 | Ground | Ground | |
17 | Tail Lamp (+) | Tail Lamp (+) | |
18 | Sensor REF (+5V) | Sensor REF (+5) | |
19 | ECV + | ECV + | |
20 | ECV - (Ground) | ECV - (Ground) | |
21 | Mode Actuator (Vent) | Mode Actuator (Vent) | |
22 | Mode Actuator (Defog) | Mode Actuator (Defog) | |
23 | Temperature Actuator (Cool) | Temperature Actuator (Cool) | |
24 | Temperature Actuator (Warm) | Temperature Actuator (Warm) | |
25 | Intake Actuator (Fresh) | Intake Actuator (Fresh) | |
26 | Intake Actuator (Recirculation) | Intake Actuator (Recirculation) | |
27 | C-CAN (High) | C-CAN (High) | |
28 | C-CAN (Low) | C-CAN (Low) | |
29 | Max. Blower ON Signal | Max. Blower ON Signal | |
30 | - | - | |
31 | Blower ON Signal To Common | Blower ON Signal To Common | |
32 | Rheostat (ILL-) | Rheostat (ILL-) |
