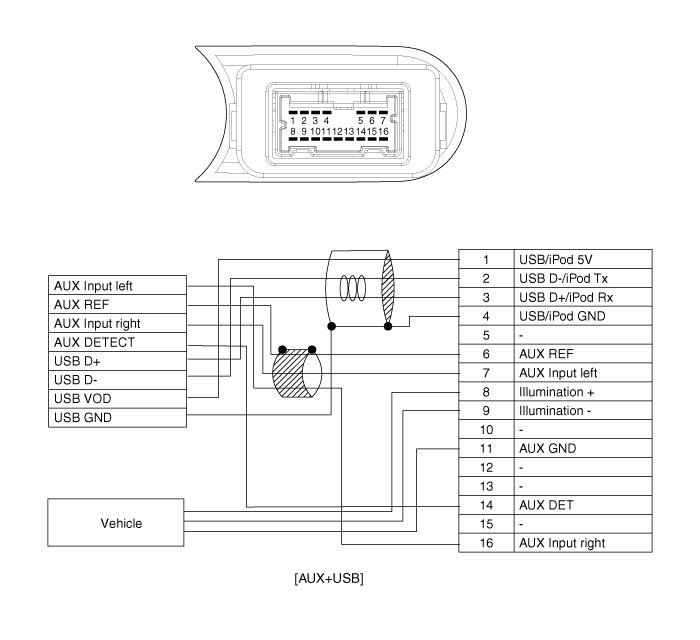

No | Terminal Description | Condition | Specified Condition |
1 | USB /iPod power | USB/iPod device is inserted | 4.9V ~ 5.1V |
2 | USB D- | USB device is inserted | 3.2V ~ 3.45 |
3 | USB D+ | USB device is inserted | 3.2V ~ 3.45 |
4 | iPod detection line | iPod device is inserted | GND |
5 | - |
|
|
6 | AUX Reference Ground | Always | Below 1 ohm |
7 | AUX Left Sound Signal | External Auxiliary device is Audio playing(At time of Aux jack use) | A waveform synchronized with sound is output |
8 | Illumination (+) |
|
|
9 | Illumination (-) |
|
|
10 | - |
|
|
11 | Multimedia jack ground |
| GND |
12 | - |
|
|
13 | - |
|
|
14 | AUX Signal Input Detect | Auxiliary device is inserted | 0V(Low) → 5V(High) |
15 | - |
| - |
16 | AUX Right Sound Signal | External Auxiliary device is Audio playing(At time of Aux jack use) | A waveform synchronized with sound is output |
