Troubleshooting

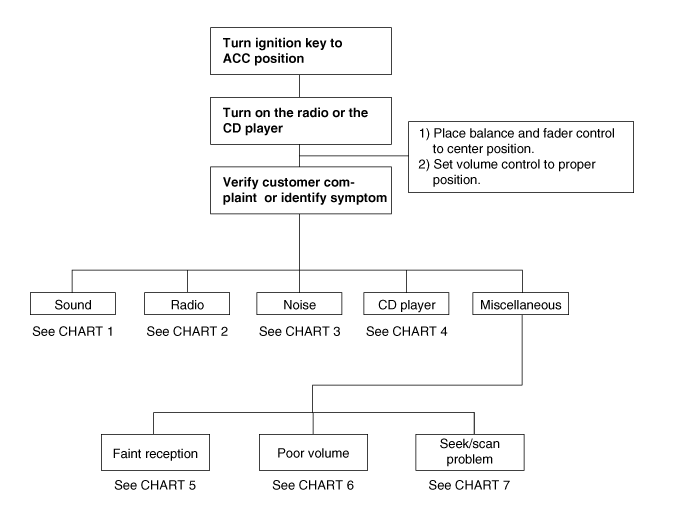

Customer Complaint Analysis Check Sheet

There are six areas where a problem can occur: wiring harness, the radio, the CD player, and speaker. Troubleshooting enables you to confine the problem to a particular area.

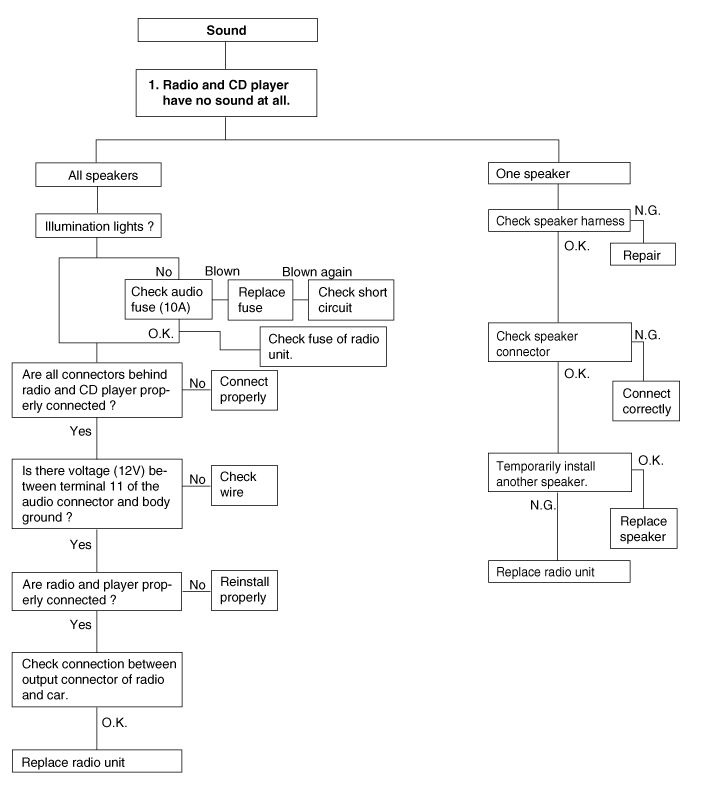

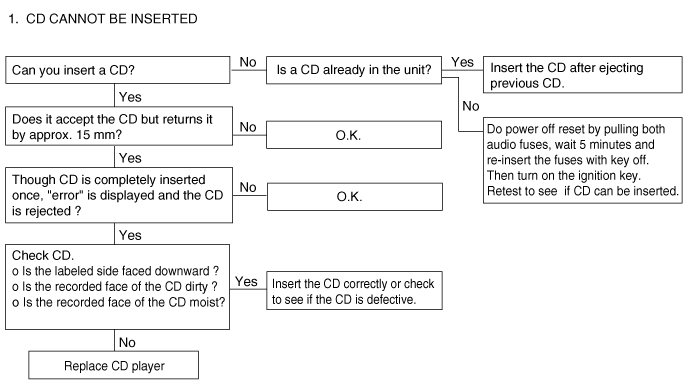

Chart 1

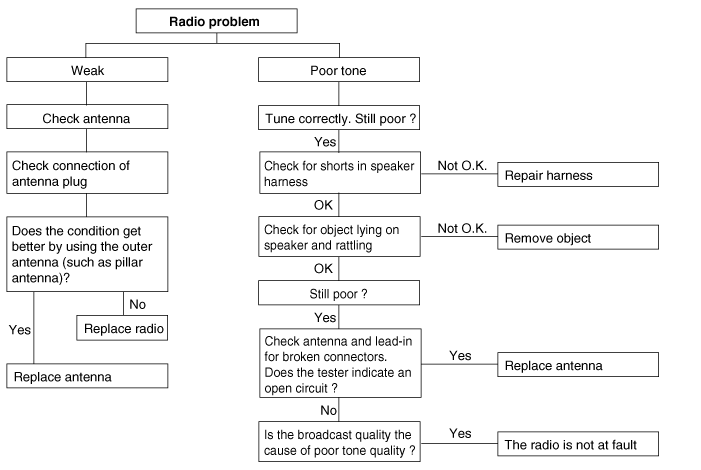

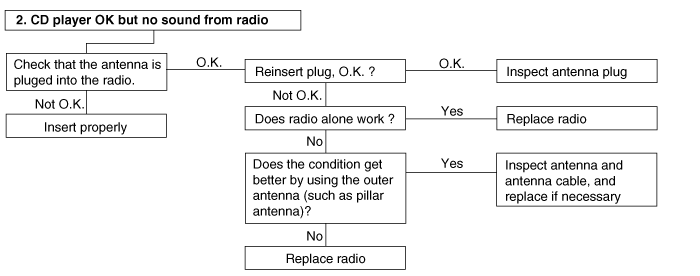

Chart 2

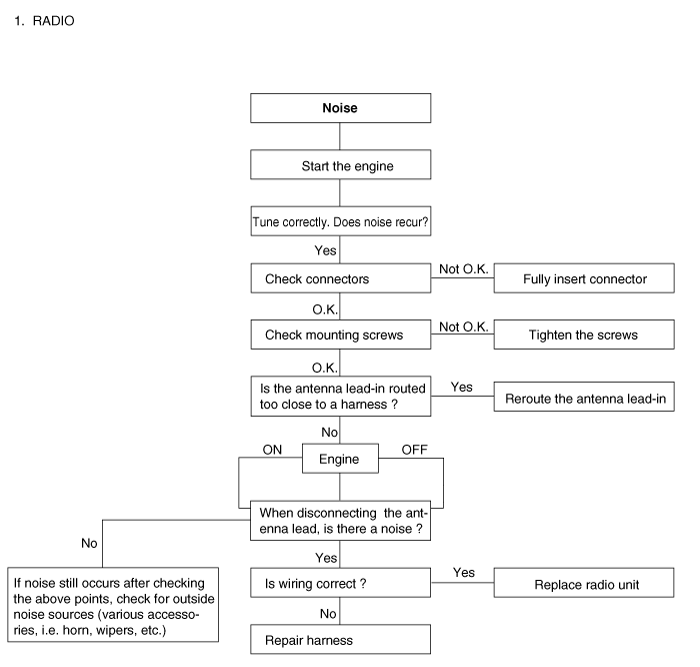

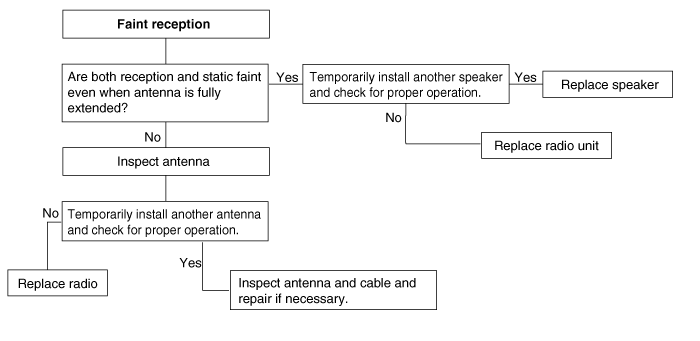

Chart 3

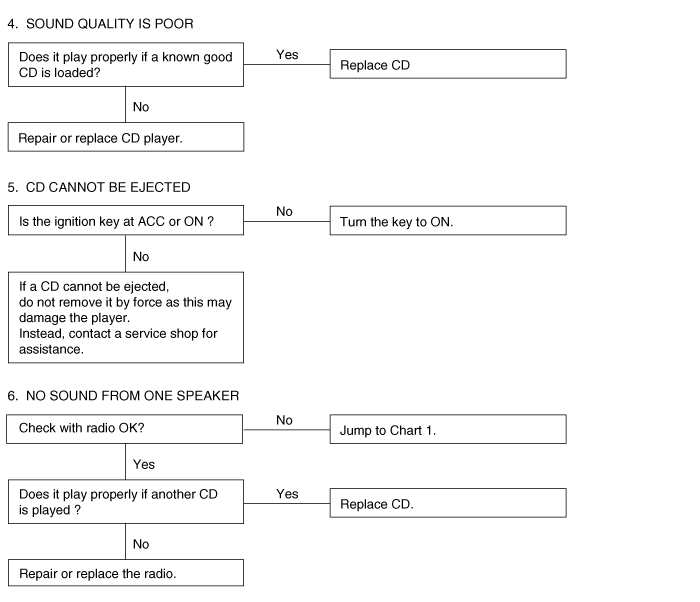

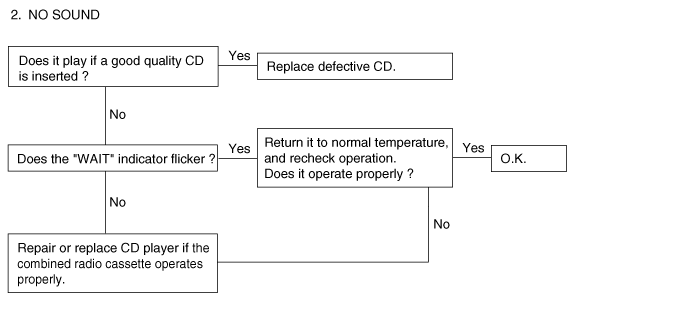

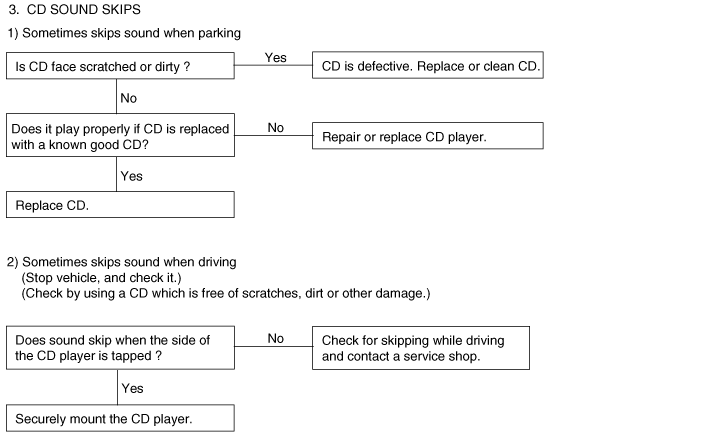

Chart 4
Chart 5
Chart 6

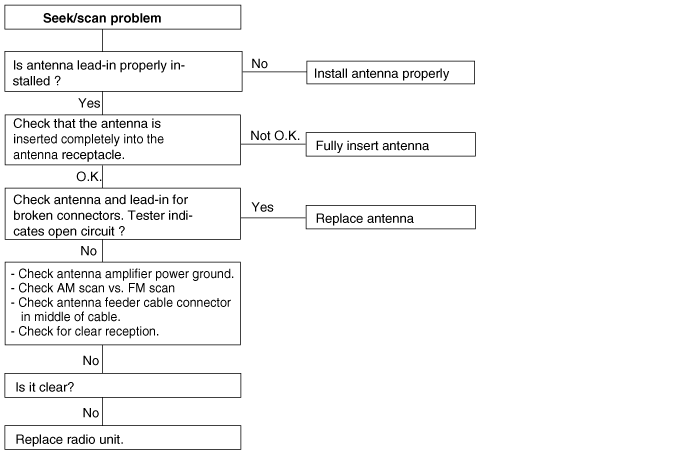

Chart 7
