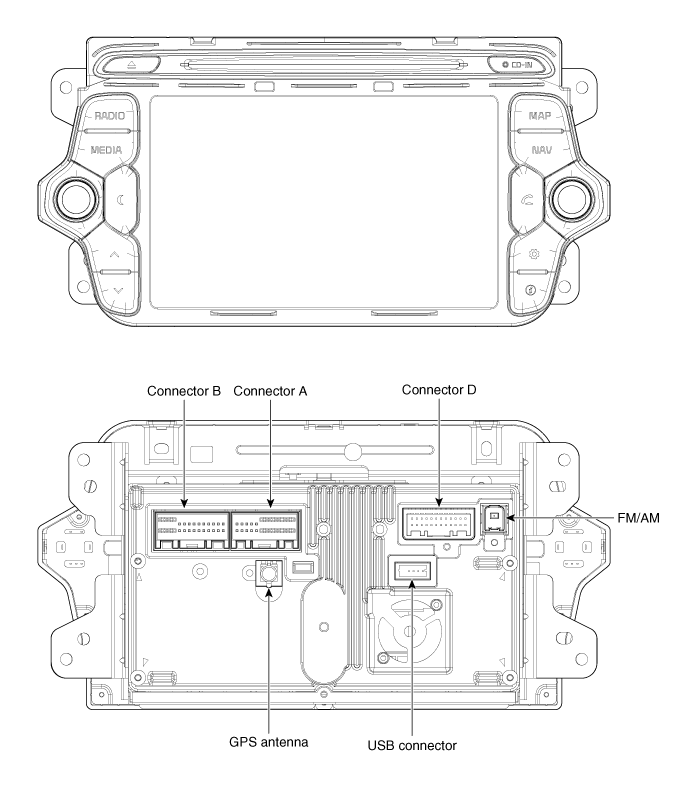

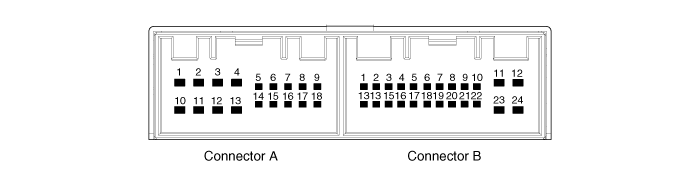

No. | Connector A | Connector B |
1 | Front left speaker (+) | - |
2 | Front right speaker (-) | - |
3 | Front right speaker (+) | Door unlock |
4 | Front left speaker (-) | - |
5 | - | Steer key |
6 | - | Illumination (-) |
7 | R Position | Illumination (+) |
8 | - | AUX Audio right |
9 | - | AUX Audio ground |
10 | Rear right speaker (+) | AUX Audio left |
11 | Rear right speaker (-) | ACC |
12 | Rear left speaker (+) | Battery (+) |
13 | Rear left speaker (-) | - |
14 | - | - |
15 | - | Auto light |
16 | AUX Video ground | - |
17 | AUX Video | Steer key ground |
18 | Vehicle speed | Remote antenna |
19 |

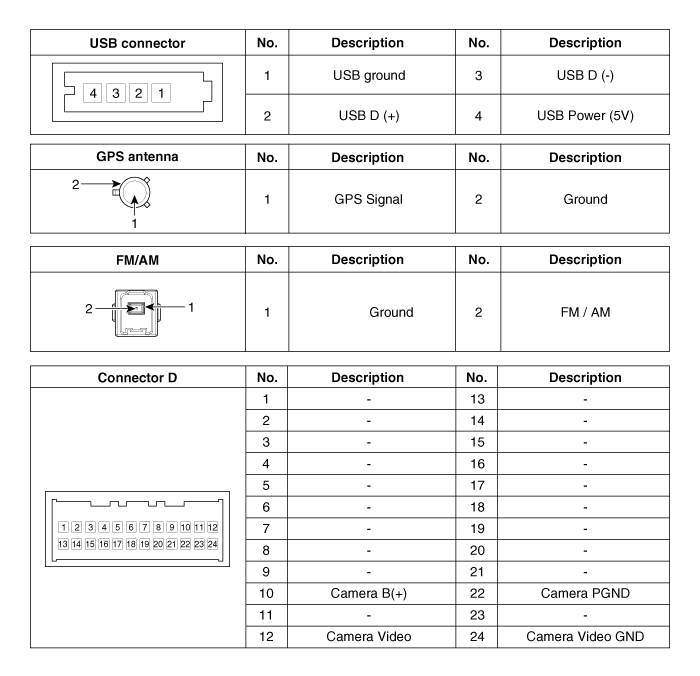

| ALT IN |
20 | AUX detect | |
21 | MIC (+) | |
22 | MIC (-) | |
23 | Ground | |
24 | Ground |
