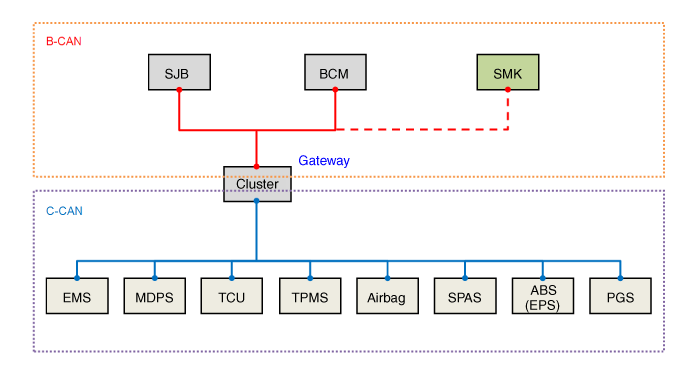

Function | Description |
Front Washer & Wiper | - Settings: IGN2 On, - Action : Washer switch On and Off, - Response : Controlling wiper relay for 2.5~3.8 sec. |
INT Wiper | - Settings: IGN2 On, - Action : Front wiper INT switch On, - Response : Controlling Wiper relay On/Off with 2.2~10 sec period depending on INT_Volume |
MIist Wiper | - Settings: IGN2 On, -Action : Mist switch On, - Response : Controlling Wiper relay On during Mist switch On |
Rear Washer & Wiper | - Settings: IGN2 On, - Action : Rear washer switch On and Off, - Response : Controlling rear wiper relay during switched On, Controlling rear wiper relay for 2.5~3.8 sec. after switched Off |
Rear Wiper ON | - Settings: IGN2 On, - Action : Rear wiper On, - Response : Controlling Rear wiper relay until switched Off |
Rear INT Wiper | - Settings: IGN2 On, - Action : Rear INT wiper On, - Response : Controlling Rear wiper relay with 6 sec. period |
Function | Description | |
Input | Output | |
Seatbelt Reminder (Europe) | - IGN On while belt off, | - Seat Belt Indicator On until belt on |
- IGN On while belt on, | - Seat Belt Indicator On for 6 sec. | |
- IGN On & Vehicle Speed > 9km/h while belt off, | - Seat Belt Indicator blinking | |
- IGN On & Vehicle Speed > 20km/h while belt off, | - Seat Belt Indicator blinking and buzzer warning starting | |
- When IGN On & Vehicle Speed > 20km/h while belt on, belt off | - Seat Belt Indicator blinking and buzzer warning starting | |
- When Vehicle Speed > 20km/h & belt Off and Seatbelt Indicator Blinking and buzzer warning, belt On, | - Seat Belt Indicator Off and Buzzer Off | |
Rear Seatbelt Reminder (Europe) | - IGN on while rear seat belt off | - Rear Seat Belt Indicator On |
- Alternator On and Rear Seat Belt Off | - Rear Seat Belt Indicator On for 35 sec. after that Indicator turn off | |
- Alternator On and Rear Seat belt off → 35 sec → Vehicle Speed > 20km/h | - Rear Seat Belt Indicator On for 35 sec. again | |
- Vehicle Speed >20km/h & Rear Seat belt [On → Off] | - Rear Seat Belt Indicator Blinking and Buzzer warning starting | |
Parking Start Warnig] | - IGN1 On & Parking Brake switch On & Vehicle Speed > 5km/h | - Parking Brake Warning Starting |
Sunroof Warning | - Key Off & Driver side Door Open & Sunroof Open | - Sunroof Warning Starting |
Ice Warning | - IGN2 On & Outside Temperature < 4 Celsius | - Ice Warning Starting |
RPAS Warning | - Gear Position R and PAS Sensors detecting warning, | - PAS Warning Starting according to warning level from PAS Sensors |
SMK Warning | - SMK sends warning messages such asIDOUT WNG,ESCL Not locked Warning,ESCL Not Unlocked Warning,SSB Warning, | - Buzzer warning Starting according to SMK Warning Message |
Rear Defogger Front Deicer | - IGN1 On & Alternator On & Defogger switch On, | - Defogger On & Deicer On for 20 min. |
Power Window | - IGN1 On, | - Power Window enable all the time |
- IGN1 Off, | - 30sec. After IGN 1 turned off, Power Window disable | |
- less than 30 sec. after IGN1 turned off, and Driver Door Open | - Power window disable immediately | |
Tail Lamp Auto Cut | - Key In & Tail switch On → Key Off → Driver Door Open | - Tail Lamp Off |
- key In & Tail switch On → Key Off → Driver Door Open → Tail switch Off → Tail switch On | - Tail Lamp On | |
EC DRL | - IGN2 On & Alternator On and DRP Option On & Tail switch Off, | - DRL On |
- IGN2 On & Alternator On and DRP Option On & Tail switch Off → Tail switch On, | - DRL Off | |
- IGN2 On & Alternator On and DRP Option On & Tail switch Off → IGN2 Off, | - DRL Off | |
Auto Light | - IGN1 On & Auto light switch On with day light condition | - Tail lamp Off, Head Lamp Off |
- IGN1 On & Auto light switch On with night light condition | - Tail lamp On, Head Lamp On | |
- IGN1 on & Auto light switch on with day light condition → night light condition | - 2.5sec. after sensing night light condition, Tail lamp On and Head Lamp On | |
- IGN1 on & Auto light switch on with night light condition → day light condition | - 5sec. after sensing day light condition, Tail lamp Off and Head Lamp Off | |
Front Fog Lamp | - Front Fog switch On when IGN2 On & Tail lamp On | - Front Fog Lamp on |
Rear Fog Lamp | - Rear Fog switch On when IGN2 On & Tail Lamp On & Front Fog Lamp On | - Rear Fog Lamp on |
- Rear Fog switch On when IGN2 On & Tail Lamp On & Head lamp On | - Rear Fog Lamp on | |
Room Lamp | - Any Door Open, | - Room Lamp On for 20min. |
- All Door Closed & Key [On → Off] & Any Door Unlock, | - Room Lamp On for 30sec. | |
- All Door Closed & Key [On → Off] & All Door Lock, | - Room Lamp Off | |
- Tx Unlock, | - Room Lamp On for 30sec. | |
- Tx Lock while Room Lamp On, | - Room Lamp Off | |
Head Lamp | - IGN2 On & Head Lamp switch On, | - Head Lamp On |
Escort | - IGN2 On, Head Lamp switch On → IGN Off, | - Head Lamp On for 20 min. |
- IGN2 On, Head Lamp switch On → IGN Off → Driver Door Open → Drive Door Close, | - Head Lamp On for 30 sec. | |
Static Bending Lamp | - IGN2 On & Head Lamp switch On & Vehicle Speed <10 km/h & Steering wheel Angle >100 degree, | - Static Bending Lamp On according to its clockwise rotation Clockwise → Left Static Bending Lamp On, Count clockwise → Right Static Bending Lamp On |
- IGN2 On & Head Lamp switch On & Vehicle Speed <10 km/h & Gear Position [R] & Steering wheel Angle >100 degree | - Opposite side of Static Bending Lamp On Clockwise → Right Static Bending Lamp On, Count clockwise → Left Static Bending Lamp On | |
- Static Bending Lamps are controlled by the complicated calculation between Vehicle Speed and Steering wheel AngleTo see more detail, refer to “Head lamp” system. | ||
Head Lamp Welcome | - Head Lamp switch On & All Door Closed & All Door Locked & Key Off & TX Unlock , | - Head Lamp On & Tail lamp On for 15 sec. |
- Head Lamp switch On & All Door Closed & All Door Locked & Key Off & TX Unlock → TX Lock before 15 sec timer expired, | - Head Lamp Off just after TX Lock | |
- Auto light switch On & night light condition & All Door Closed & All Door Locked & Key Off & TX Unlock , | - Head Lamp On & Tail lamp On for 15 sec. | |
EC Unlock | - Key Off & Any Door Open & Central switch Lock switch On, | - All door Unlock |
- Key Off & Any Door Open & Tx Lock, | - All Door Unlock | |
Key Reminder | - Key On & Driver/Assist door Open & Central switch Lock switch On, | - All Door Unlock. If knob keeps being in lock, BCM retries unlock 3 times |
- Key On & Driver/Assist Door Open & Driver/Assist Knob changes unlock → lock | - All Door Unlock. If knob keeps being in lock, BCM retries unlock 3 times | |
Passive Reminder | - Passive Reminder signal received from SMK | - All Door Unlock and Buzzer warning starts |
Crass Unlock | - Key On & Crash Signal received, | - All Door Unlock for 5 sec. |
Speed Sensing Auto door Lock | - IGN1 On & Alternator On & Any Door Unlock & Vehicle Speed >15km/h, | - All Door Lock |
- IGN1 On & Alternator On & Vehicle Speed >15km/h & All Door Lock → Any Door unlock, | - All Door Lock | |
Shift-Lever Auto door Lock | - IGN1 On & Alternator On & Shift-Lever Position [R] → not [R], | - All Door Lock |
Key Off Auto Door Unlock | - Any Door Lock & Key [In] → [Off] | - All Door Unlock |
Shift-Lever Auto door Unlock | - IGN1 On & Alternator On & Shift-Lever Position not [R] → [R], | - All Door Unlock |
Navi Wake up | - Key Out & Tx Unlock/Passive Unlock received, | - Navigation Wakeup Signal sends - No re-send within 1 min. |
Tail Gate Release | - All Door Unlock & Tail Gate Open switch On, | - Tailgate Release |
- Passive Tailgate signal received, | - Tailgate Release | |
Antitheft | - All Door Closed & Key Off & Tx Lock & All Door Closed, | - Armwait for 30 sec. - Arm after 30 sec. without any interrupts |
- [Arm state] Door open without Tx unlock/Passive Unlock signal | - Horn activates, Hazard lamp blinks | |
