※ Internal Buzzer : Parking assist system buzzer

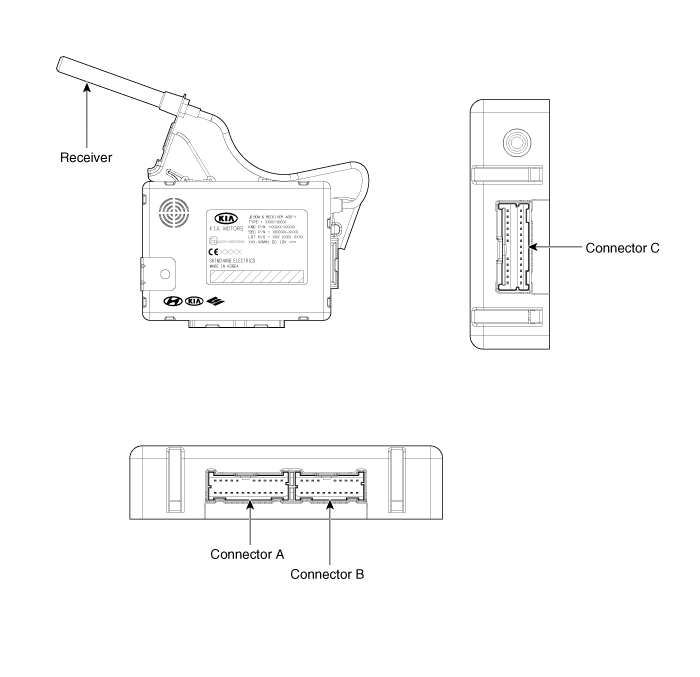

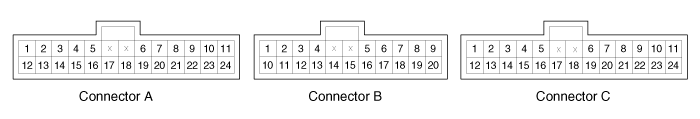

No. | Connector A | Connector B | Connector C |
1 | Battery | Head lamp high switch | Room lamp |
2 | IGN1 | Head lamp low switch | External buzzer |
3 | IGN2 | Side air bag switch | Security IND |
4 | ACC | Diagnosis | PAS off IND |
5 | Wiper MIST switch | LIN RPAS | Safety power window |
6 | Tail switch | Auto light power | AV tail |
7 | Key In | Auto light sensor | Key hole illumination |
8 | Crash unlock | Auto light GND | - |
9 | Front deicer switch | - | - |
10 | Defogger switch | Front fog switch | ATM solenoid |
11 | Auto light switch | Rear fog switch | - |
12 | Central door lock switch | - | Puddle lamp |
13 | Brake switch | - | - |
14 | Rear washer switch | MTS Rx | - |
15 | Rear wiper switch | MTS Tx | - |
16 | Washer switch | CAN high | Central door lock IND |
17 | Wiper INT switch | CAN low | GND |
18 | Rear wiper INT switch | CAN high | Head lamp washer relay |
19 | Sunroof open switch | CAN low | - |
20 | Key Interlock switch | Head lamp low control | Wiper relay |
21 | Wiper INT volume |
| - |
22 | ICE warning switch |
| - |
23 | PAS off switch |
| - |
24 | GND |
| - |
