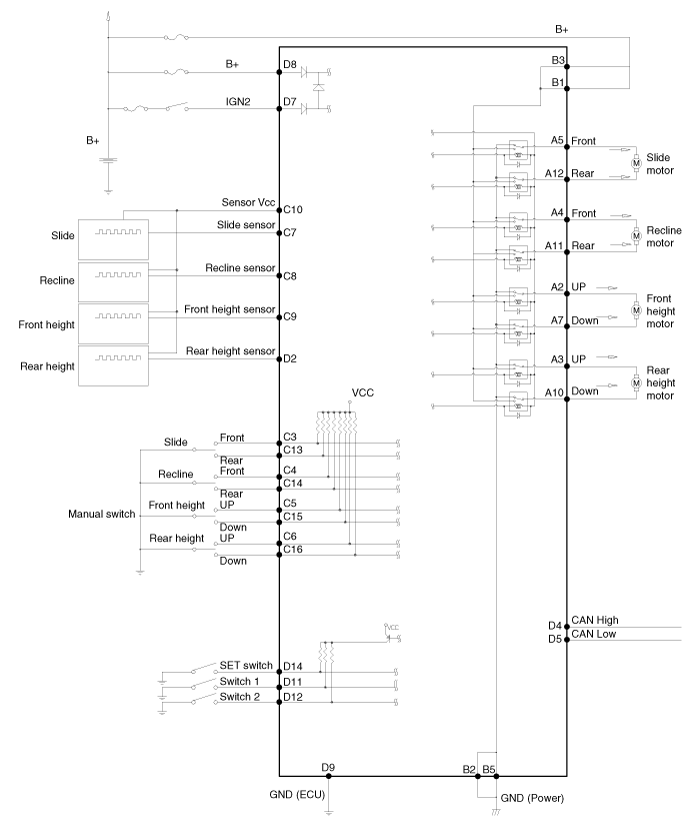

Circuit Diagram
Input/Output Specification

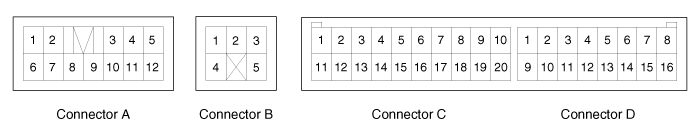

Connector Pin Lay Out
IMS input/output pin information

No

Signal Name

I/O

Contents

Remark

A1

-

-

-

A2

Front height motor up

O

Front height motor up output

A3

Rear height motor up

O

Rear height motor up output

A4

Recline motor front

O

Recline motor front output

A5

Slide motor front

O

Slide motor front output

A6

-

-

-

A7

Front height motor down

O

Front height motor down output

A8

-

-

-

A9

-

-

-

A10

Rear height motor down

O

Rear height motor down output

A11

Recline motor rear

O

Recline motor rear output

A12

Slide motor rear

O

Slide motor rear output

B1

B+(Power)

I

Power B+ for operating motor

B2

GND(Power)

I

Power GND for operating motor

B3

B+(Power)

I

Power B+ for operating motor

B4

GND (Power)

I

Power GND for operating motor

B5

B+(Power)

I

Power B+ for operating motor

C1

-

-

-

C2

-

-

-

C3

Slide front manual switch

I

Slide front manual switch input

On : GND

C4

Recline front manual switch

I

Recline front manual switch input

On : GND

C5

Front height up manual switch

I

Front height up manual switch input

On : GND

C6

Rear height up manual switch

I

Rear height up manual switch input

On : GND

C7

Slide motor sensor

I

Slide motor sensor input

Pulse signal

C8

Front height motor sensor

I

Front height input motor sensor

Pulse signal

C9

Front height motor sensor

I

Front height motor sensor input

Pulse signal

C10

Sensor Vcc(Seat)

O

VCC for operating sensor

5V

C11

-

-

-

C12

-

-

-

C13

Slide rear manual switch

I

Slide rear manual switch input

ON : GND

C14

Recline rear manual switch

I

Recline rear manual switch input

ON : GND

C15

Front height down manual switch

I

Front height down manual switch input

ON : GND

C16

Rear height down manual switch

I

Rear height down manual switch input

ON : GND

C17

-

-

-

C18

-

-

-

C19

-

-

-

C20

-

-

-

D1

-

-

-

D2

Rear height sensor

I

Rear height motor sensor

Pulse signal

D3

-

-

-

D4

CAN High

I/O

CAN

D5

CAN Low

I/O

CAN

D6

-

-

-

D7

IGN1

I

IGN1 input

BAT

D8

B+(ECU)

I

ECU power input

BAT

D9

GND(ECU)

I

ECU GND

D10

-

-

-

D11

Switch1

I

Switch input

D12

Switch2

I

Switch input

D13

-

-

-

D14

SET switch

I

Switch input

D15

-

-

D16

-

-

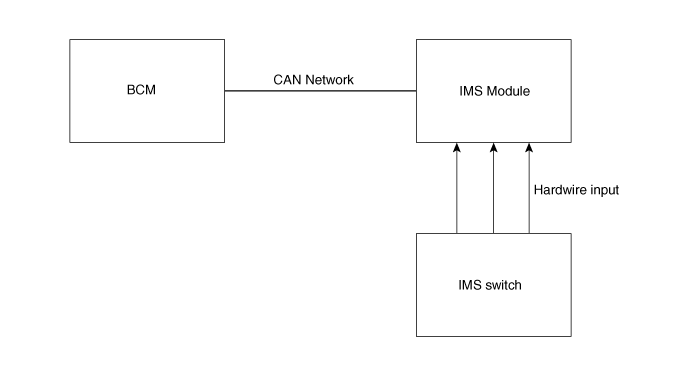

Communication System
