Inspection

Initialization and diagnosis sequence by using diagnostic equipment

Below content summarize the procedure for A/S using Diagnostic equipment

Download Parameter
1.

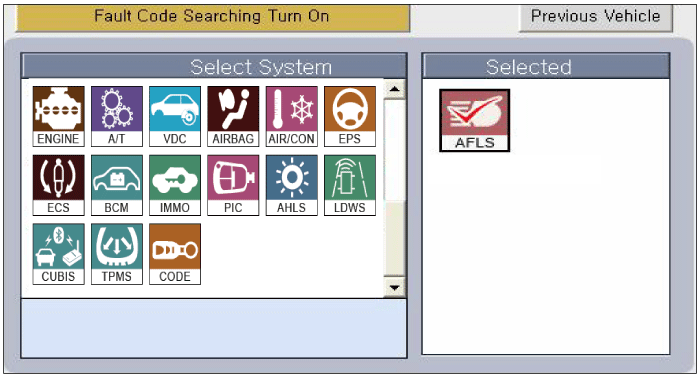

Select "AFLS" menu after selecting a vehicle.

2.

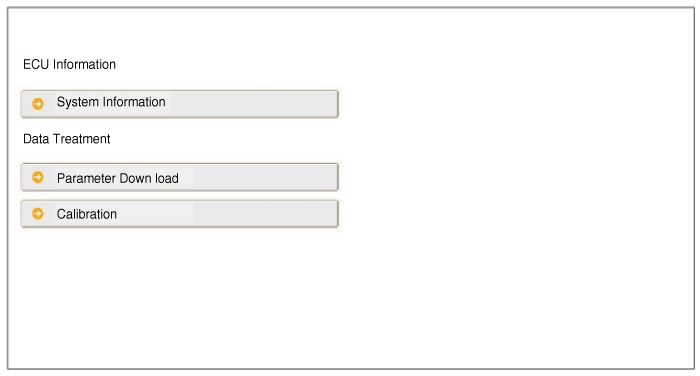

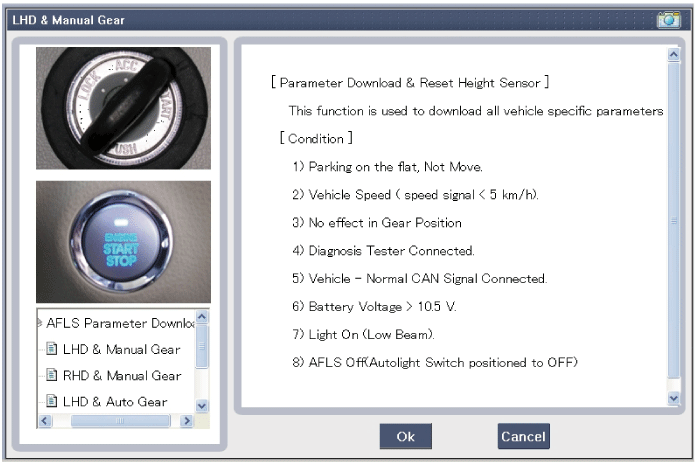

Select "Parameter download" menu for define a characteristc of vehicle.

3.

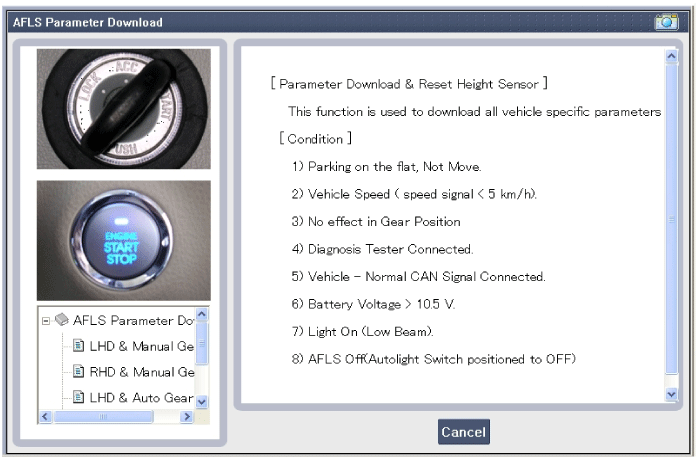

Select the LHD/RHD and MT/AT option refer to the vehicle options.

4.

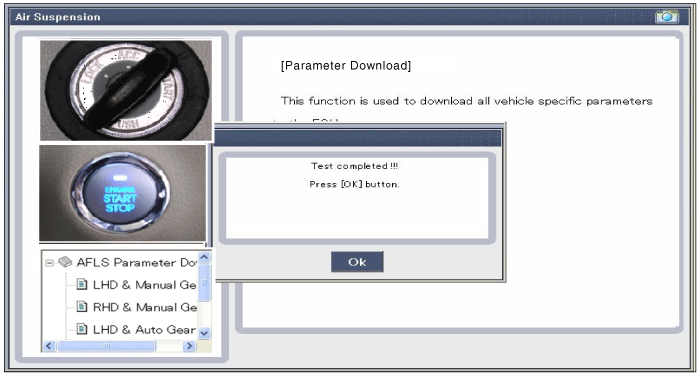

When "Parameter download" is done,display belows.

System Calibration
caution

This menu is applied only if vehicle has a Steel suspension

1.

Select "AFLS" menu after selecting a vehicle.

2.

Select "Sensor initializing-Non ECS" if vehicle has a Steel suspension

3.

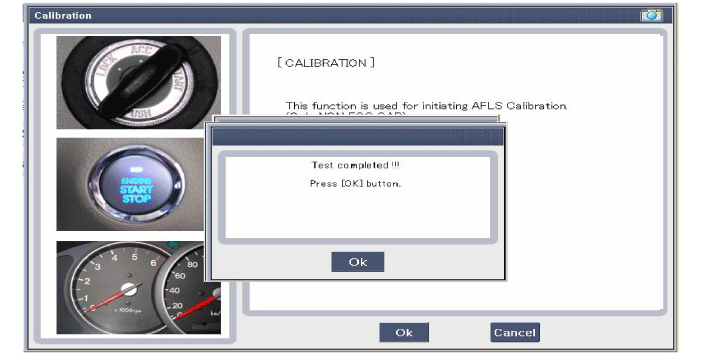

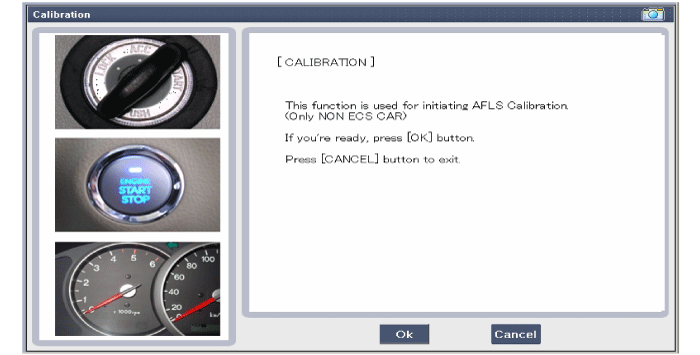

When "System calibration" is done,display belows.

4.

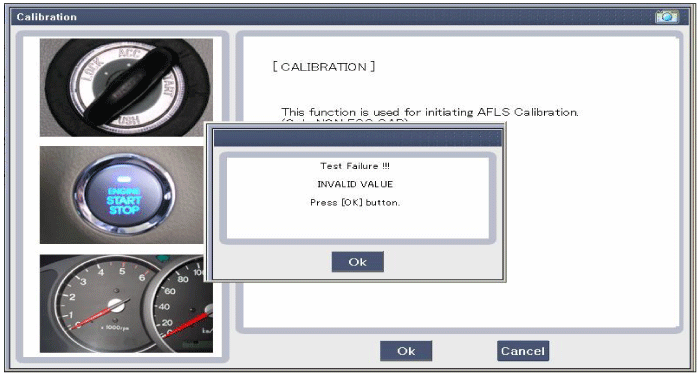

When "System calibration" is not done,display as belows.

Actuator Test

When it replace H/Lamp Unit, it necessarily check up by operating actuator test.

1.

Select "AFLS" menu after selecting a vehicle.

2.

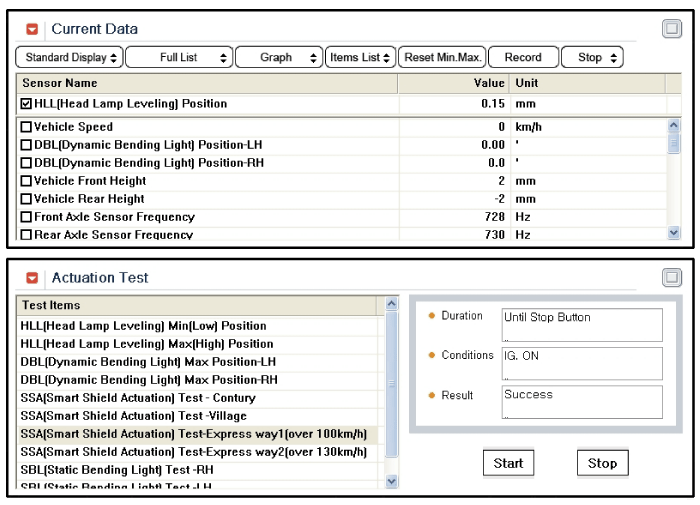

Select "Actuator test"

3.

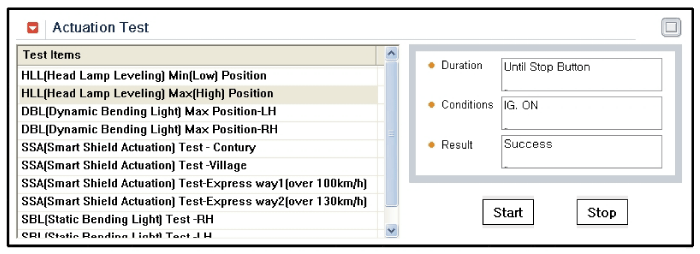

Select DBL or HLL test by using "Start" button.

4.

In case select DBL or HLL ACTUATOR DRIVE TO MAX POS(swivelling)

In case select "Start" button : drive to max position right direction (15°)

In case select another item : back to initial position

AFLS Fail-safe Function

If the error condition of AFLS occurred during system operation, the system have to fail-safe reaction for prevent dazzling of opposite side driver

AFLS Fail-safe Index

Part

Content

Fail-safe Reaction

Tell-tale

Result

ECU

ECU Hardware

(A/D Converter fail)

1) Levelling : staying in current POS

2) Swivelling : staying in current POS

-

ECU Software

(EEPROM/ROM fail)

1) Levelling : staying in current POS

2) Swivelling : staying in current POS

Control Unit not initialized

Calibration not performed

1) Levelling : drive to error POS (H-15)

2) Swivelling : drive to error POS (0°)

Levelling module

fault

Right

Short circuit

1) Right Levelling : staying in current POS

2) Left Levelling : normal operation

3) Swivelling : Normal operation

-

Over

temperature

LIN

communication

error

1) Right Levelling: staying in current POS(Before), drive to error POS

2) Left Levelling: normal operation

3) Swivelling : normal operation

Left

Short circuit

1) Left Levelling : staying in current POS

2) Right Levelling : normal operation

3) Swivelling : Normal operation

-

Over

temperature

LIN

communication

error

1) Right Levelling: normal operation

2) Left Levelling: staying in current POS(Before), drive to error POS

3) Swivelling : normal operation

Swivelling

module

fault

Right

Short circuit

1) Right Swivelling : staying in current POS

2) Left Swivelling : drive to error POS

3) Right Levelling : drive to error POS

4) Left Levelling : Normal operation

Tell-tale

Over temperature

Stall detected

LIN coummunication

LIN

fault

Before

1) Swivelling : staying in current POS

2) Lefvelling : drive to error POS

After

1) Swivelling : drive to error POS

2) Lefvelling : drive to error POS

DBL

supply

fault

Before

1) Swivelling : staying in current POS

2) Lefvelling : drive to error POS

After

1) Right Swivelling : staying in current POS

2) Left Swivelling : drive to error POS

3) Lefvelling : drive to error POS

Left

Short circuit

1) Left Swivelling : staying in current POS

2) Right Swivelling : drive to error POS

3) Left Levelling : drive to error POS

4) Right Levelling : Normal operation

Tell-tale

Over temperature

Stall detected

LIN coummunication

LIN

fault

Before

1) Swivelling : staying in current POS

2) Lefvelling : drive to error POS

After

1) Swivelling : drive to error POS

2) Lefvelling : drive to error POS

DBL

supply

fault

Before

1) Swivelling : staying in current POS

2) Lefvelling : drive to error POS

After

1) Left Swivelling : staying in current POS

2) Right Swivelling : drive to error POS

3) Lefvelling : drive to error POS

AXLE

sensor

Front &

Rear

external(5V) Sensor power supply fault

(short to ground or to Bat)

1) Levelling : drive to error POS

2) Swivelling : Normal operation

-

Front

FREQ_LOWER , FREQ_UPPER

1) Levelling : drive to error POS

2) Swivelling : Normal operation

Signal line open circuit

1) Levelling : drive to error POS

2) Swivelling : Normal operation

Signal line short circuit

Front sensor out of range

Front sensor out of

range

FREQ_LOWER , FREQ_UPPER

1) Levelling : drive to error POS

2) Swivelling : Normal operation

Signal line open circuit

1) Levelling : drive to error POS

2) Swivelling : Normal operation

Signal line short circuit

Front sensor out of range

Battery

battery voltage too high

1) Levelling: staying in current POS(Before), drive to error POS

2) Swivelling : staying in current POS(Before), drive to error POS

-

battery voltage too low

1) Levelling: staying in current POS(Before), drive to error POS

2) Swivelling : staying in current POS(Before), drive to error POS

LIN physical fault

Short circuit to battery or GND

(physical fault)

Before

1) Levelling : staying in current POS

2) Swivelling : staying in current POS

Tell-tale

After

1) Levelling : drive to error POS

2) Swivelling : drive to error POS

CAN

communication

fault

Speed

signal

fault

speed signal invalid

1) Levelling : Medium dynamic mode

2) Swivelling : drive to error POS

-

supplying ECU not available on

CAN

Steering

angle

signal

fault

Steering wheel sensor not O.K

(signal invalid)

1) Levelling : normal operation

2) Swivelling : drive to error POS

-

supplying ECU not available on

CAN

Gearbox

signal

fault

Reverse gear signal invalid

1) Levelling : normal operation

2) Swivelling : drive to error POS

-

supplying ECU not available on

CAN

Accelator pedal signal fault

Accelator pedal signal invalid

1) Levelling : Medium dynamic mode

2) Swivelling : Normal operation

-

supplying ECU not available on

CAN

Engine state signal

fault

Engine state signal invalid

1) Levelling : Normal operation, no operation(Before)

2) Swivelling : Normal operation, no operation(Before)

-

supplying ECU not available on

CAN

Yaw rate

signal

fault

Yaw rate signal invalid

1) Levelling : Normal no operation(Before)

2) Swivelling : Reduced performance

-

supplying ECU not available on

CAN

Brake pedal signal

fault

Brake signal invalid

1) Levelling : Medium dynamic mode

2) Swivelling : Normal operation

-

supplying ECU not available on

CAN

CAN

'Bus off'

fault

ECU is isolated from

the CAN network

Air suspension

1) Swivelling : drive to error POS

2) Levelling : drive to error POS

-

Steel

suspension

1) Swivelling : drive to error POS

2) Levelling : slow dynamic mode

Lamp unction

Signal Fault

Supplying ECU not available on CAN

1) Levelling : Normal operation

2) Swivelling : Normal operation

-

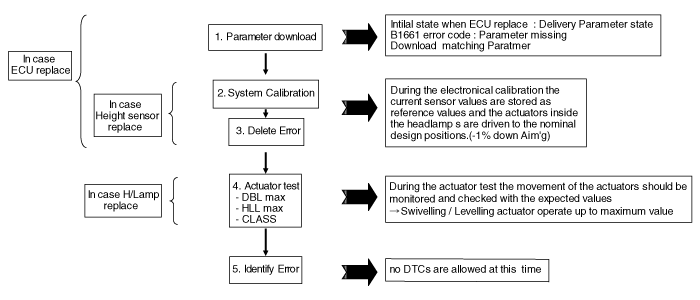

AFLS Setting Procedure

When it replace AFLS ECU or H/Lamp Unit or Height sensor, it operates in setting procedure by using Diagnostic equipment following belows.

When AFLS setting procedure operate, necessarily confirm suspension type and then download parameter.

※ DTC : Diagnostic Trouble Code

DBL : Dynamic bending Light

HLL : Head Lamp Leveling

Vehicle Condition While AFLS Setting
1.

Vehicle on an even surface

2.

No vehicle movement

3.

Gear position in P & N

4.

Ignition switched on & Engine RPM >500RPM

5.

Diagnostic equipment connected

6.

ALL ECUs on CAN mounted and activated

7.

Battery voltage > 10.5 V ( ECU supply to be ensured)

8.

Light switched

9.

AFLS ON or OFF

Action In Case Of Download Wrong Parameter
1.

Download Delivery Parameter

2.

Check up B1661(Parameter missing)

3.

Ignition OFF

4.

Ignition ON & Engine RPM > 500RPM

5.

Download matching Paratmer
