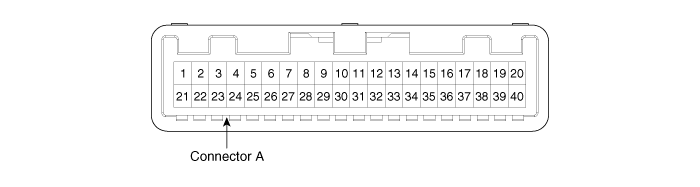

1

-

21

GND

2

-

22

CAN high

3

-

23

CAN low

4

-

24

Buzzer low

5

-

25

IND (PAS switch)

6

PAS switch

26

IND (SPAS switch)

7

SPAS switch

27

-

8

-

28

-

9

-

29

-

10

-

30

-

11

Sensor signal (front side left)

31

Sensor signal (front side right)

12

-

32

-

13

-

33

-

14

Front sensor GND

34

Rear sensor GND

15

Sensor signal (front outer right)

35

Sensor signal (rear outer left)

16

Sensor signal (front inner right)

36

Sensor signal (rear inner left)

17

Sensor signal (front inner left)

37

Sensor signal (rear inner right)

18

Sensor signal (front outer left)

38

Sensor signal (rear outer right)

19

Sensor power (front)

39

Sensor power (rear)

20

-

40

IGN
