Items | Specification | |||
Starter | without ISG system | Rated voltage | 12V, 1.7kW | |
No. of pinion teeth | 8 (M/T), 11 (A/T) | |||
No-load characteristics | Voltage | 11V | ||
Ampere | 70A, MAX | |||
Speed | 2,300rpm, MIN | |||
with ISG system | Rated voltage | 12 V, 1.8kW | ||
No. of pinion teeth | 13 | |||
No-load characteristics | Voltage | 11.5V | ||
Ampere | 100A, MAX | |||
Speed | 2,390rpm, MIN | |||
Items | Specification | |||
Alternator (with AMS system) | Rated voltage | 13.5V 130A | ||
Speed in use | 1,000 ~ 18,000rpm | |||
Voltage regulator | IC Regulator built-in type | |||
Regulator setting voltage | External mode | ECU control | ||
Internal mode | 14.55 ± 0.3V | |||
Temperature compensation | External mode | ECU control | ||
Internal mode | -3.5 ± 2mV / °C | |||

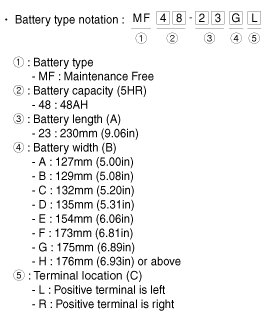

Battery | without ISG system | Type | 54 - 26 GL | |
Cold cranking amperage [at -18°C (-0.4°F)] | 600A | |||
Reserve capacity | 110min | |||
Specific gravity [at 25°C(77°F)] | 1.280 ± 0.01 | |||
with ISG system | Type | 56 - 28 GL (AGM Battery - 70Ah) | ||
Cold cranking amperage [at -18°C (-0.4°F)] | 760 A | |||
Reserve capacity | 120 min | |||
Specific gravity [at 25°C(77°F)] | 1.130 ± 0.01 | |||
COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2V or greater at a specified temperature.
RESERVE CAPACITY RATING is amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5V at 26.7°C(80.1°F).
Items | Specification | ||||
Ceramic | Metal | ||||
Glow plug | Rated voltage | 11V | 11V | 11V | |
Resistance [at 25 ± 5°C(77 ± 41°F)] | 800mΩ | 800mΩ | 450mΩ | ||
