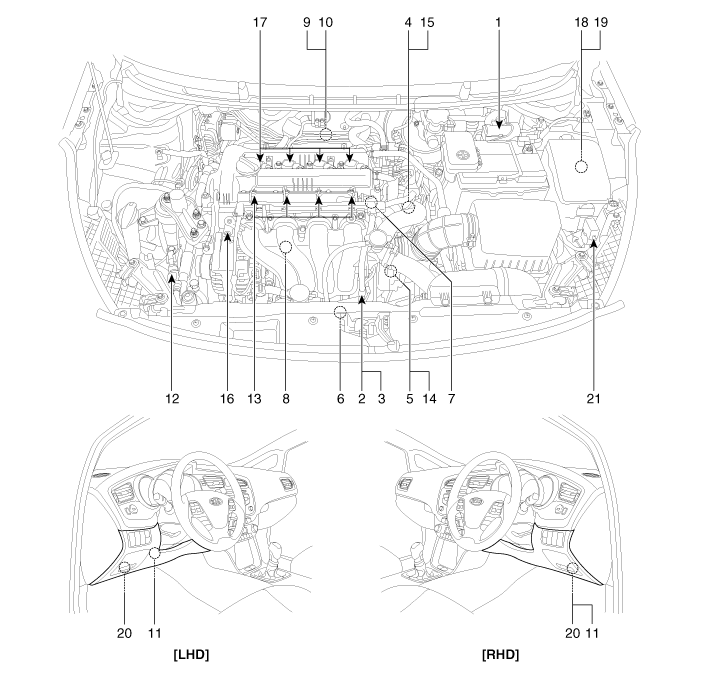

1. ECM (Engine Control Module)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS) [integrated into ETC Module]
14. ETC Motor [integrated into ETC Module]
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS)
8. Knock Sensor (KS)
9. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
11. Accelerator Position Sessor (APS)
12. A/C Pressure Transducer (APT)
13. Injector
17. Ignition Coil
15. Purge Control Solenoid Valve (PCSV)
16. CVVT Oil Control Valve (OCV)
18. Main Relay
19. Fuel Pump Relay
20. Data Link Connector (DLC) [16 pin]
21. Multi-Purpose Check Connector [20 pin]
