Disconnect the lambda sensor connector (A).
Turn the ignition switch OFF and disconnect the battery (-) cable.
Disconnect the lambda sensor connector (A).
Remove the lambda sensor (B).
Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
DON’T use a cleaner, spray, or grease to sensing element and connector of the sensor because oil component in them may malfunction the sensor performance.
Sensor and its wiring may be damaged in case of contacting with the exhaust system (Exhaust Manifold, Catalytic Converter, and so on).
Installation is reverse of removal.
Lambda sensor installation:
39.2 ~ 49.1 N.m (4.0 ~ 5.0 kgf.m, 28.9 ~ 36.2 lb-ft)
After replacing the Lambda Sensor, MUST perform the "Component Change Routine" procedure. Otherwise trouble related with engine performance or emission control may occur until ECM learning about the component is over.
Turn ignition switch OFF.
Connect a scan tool to Data Link Connector (DLC).
Turn ignition switch ON.
Select "Vehicle, Model year, Engine, System".
Select "Vehicle S/W Management".
Select "Component Change Routine".

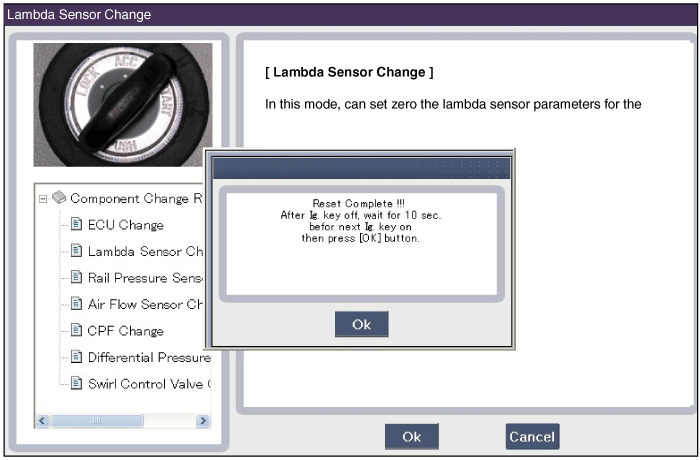

Select "Lambda Sensor Change".
Perform the procedure in accordance with the message.
