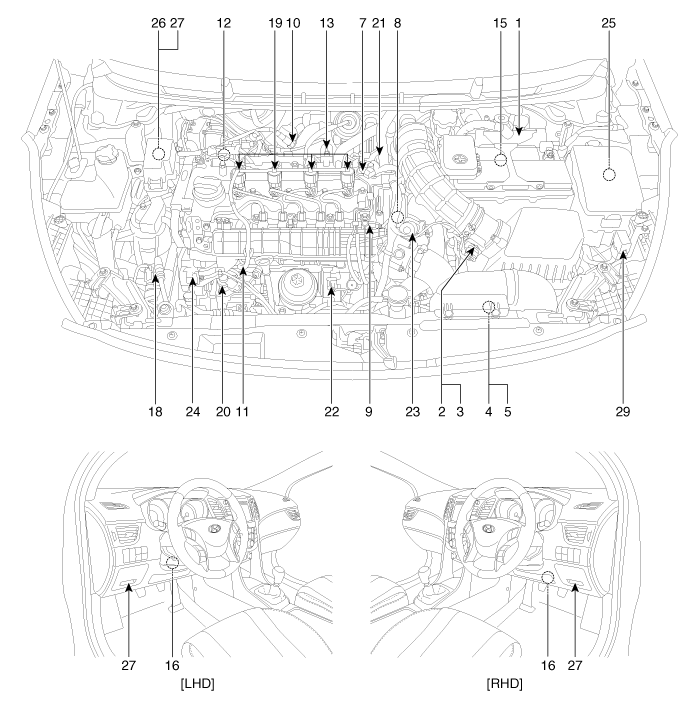

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS) #1 built in MAFS
4. Boost Pressure Sensor (BPS)
5. Intake Air Temperature Sensor (IATS) #2 built in BPS
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS)
21. Electric EGR Control Valve
8. Engine Coolant Temperature Sensor (ECTS)
9. Rail Pressure Sensor (RPS)
10. Lambda Sensor
13. Exhaust Gas Temperature Sensor (EGTS) #1 for VGT
11. Fuel Temperature Sensor (FTS)
20. Fuel Pressure Regulator Valve
12. Differential Pressure Sensor (DPS)
14. Exhaust Gas Temperature Sensor (EGTS) #2 for DPF
15. Water Sensor (included in Fuel Filter)
16. Accelerator Pedal Position Sensor (APS)
18. A/C Pressure Transducer (APT)
19. Injector
22. VGT Control Solenoid Valve
23. Air Control Valve (ACV)
24. Variable Swirl Control Actuator (VSA)
25. Main Relay
26. Glow Relay
27. PTC Heater Relay (Optional)
28. Data Link Connector (DLC) [16-pin]
29. Multi-Purpose Check Connector [20-pin]
