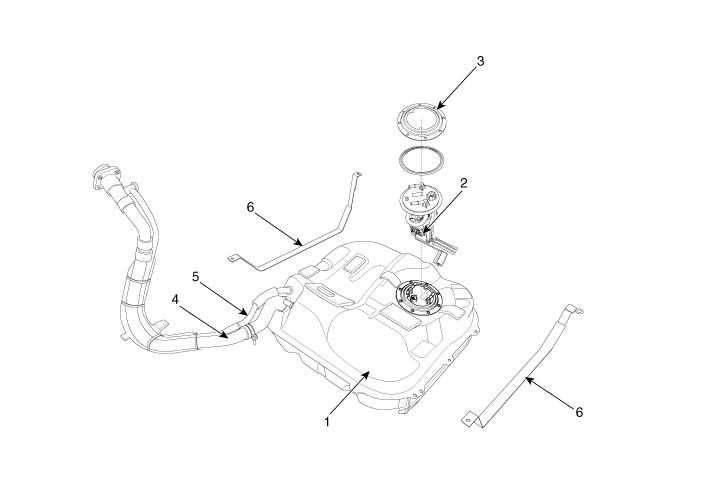

1. Fuel tank 2. Fuel sender 3. Fuel sender plate cover | 4. fuel filler hose 5. Leveling hose 6. Fuel tank band |

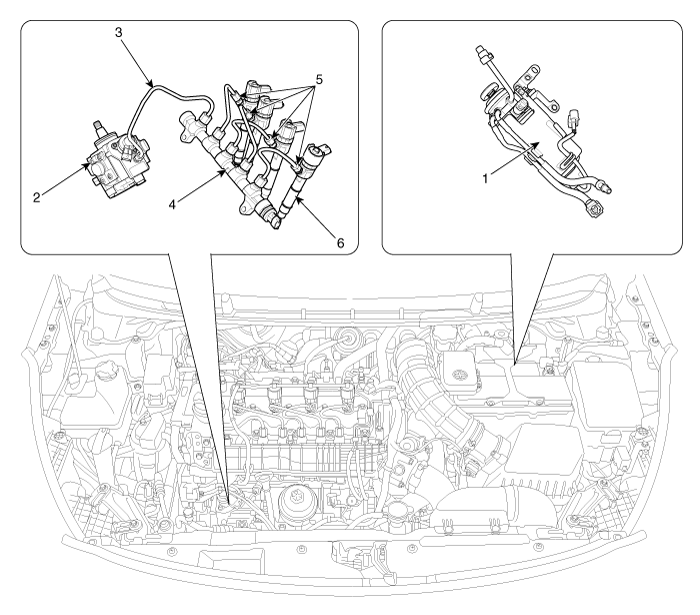

1. Fuel filter 2. High pressure fuel pump 3. High pressure fuel pipe (High pressure fuel pump ↔ Common rail) | 4. Common rail 5. High pressure fuel pipe (Injector ↔ Common rail) 6. Injector |
Common Rail Fuel Injection System operates with extremely high pressure [approximately 1,600bar (160 MPa / 23,206 psi)], so never perform any work on injection system with engine running or within 30 seconds after the engine stops.
Keep cleanly the parts and the working area.
Pay attention to a foreign substance.
Just before installing injector, tube or hose, remove the protect-cap attached on them.
Do not remove injector except for special case.
When installing Injector
- Wash the contact area of the injector and replace the O-ring with a new one.
- Spread oil on the injector O-ring.
- To protect damage caused by shock, vertically insert the injector into the cylinder head.
When installing High Pressure Fuel Pipe
- Do not use again the used high pressure fuel pipe.
- Install the flange nut correctly.
