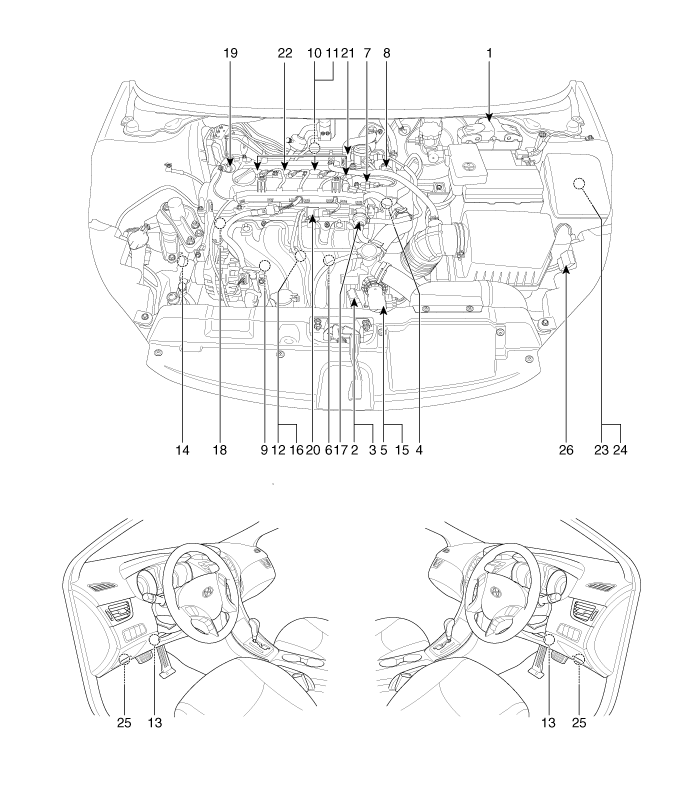

1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS)
15. ETC Motor
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Knock Sensor (KS)
10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
12. Rail Pressure Sensor (RPS)
16. Injector
13. Accelerator Position Sensor (APS)
14. A/C Pressure Transducer (APT)
17. Purge Control Solenoid Valve (PCSV)
18. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
19. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
20. Variable Intake Solenoid (VIS) Valve
21. Fuel Pressure Control Valve (FPCV)
22. Ignition Coil
23. Main Relay
24. Fuel Pump Relay
25. Data Link Connector (DLC) [16-Pin]
26. Multi-Purpose Check Connector [20-Pin]
