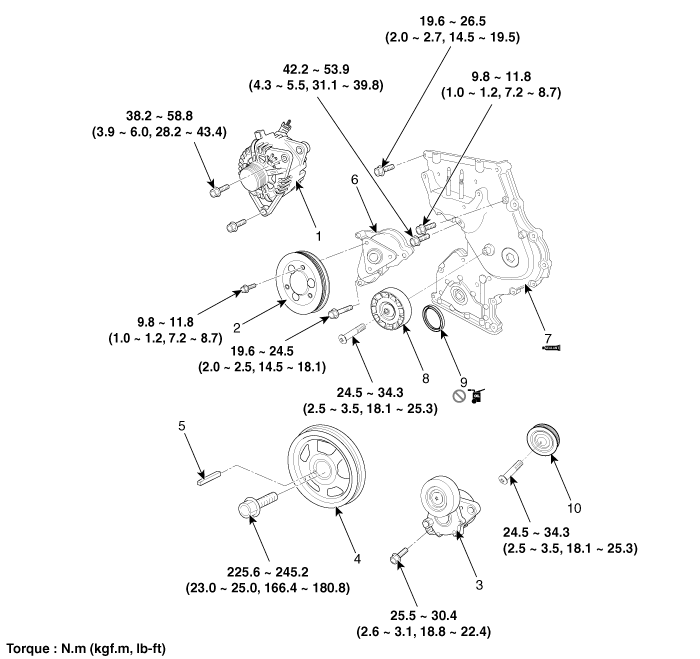

1. Alternator

2. Water pump pulley

3. Drive belt tensioner

4. Crankshaft pulley

5. Key

6. Water pump

7. Timing chain cover

8. Idler (#1)

9. Front oil seal

10. Idler (#2)

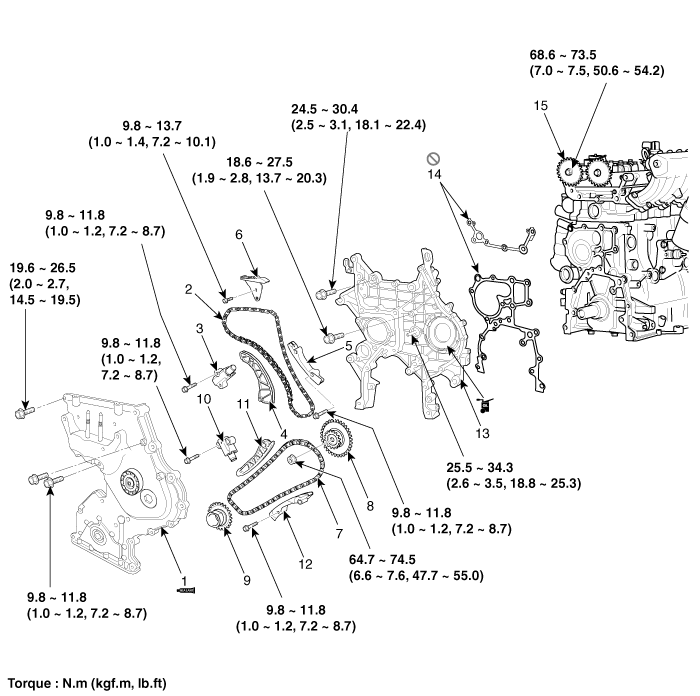

1. Timing chain cover

2. Timing chain "C"

3. Timing chain "C" auto tensioner

4. Timing chain "C" lever

5. Timing chain guide "1"

6. Timing chain guide "2"

7. Timing chain "A"

8. High pressure pump sprocket

9. Crankshaft sprocket

10. Timing chain "A" auto tensioner

11. Timing chain "A" lever

12. Timing chain guide "1"

13. Timing chain case

14. Timing chain case gasket

15. Camshaft sprocket
