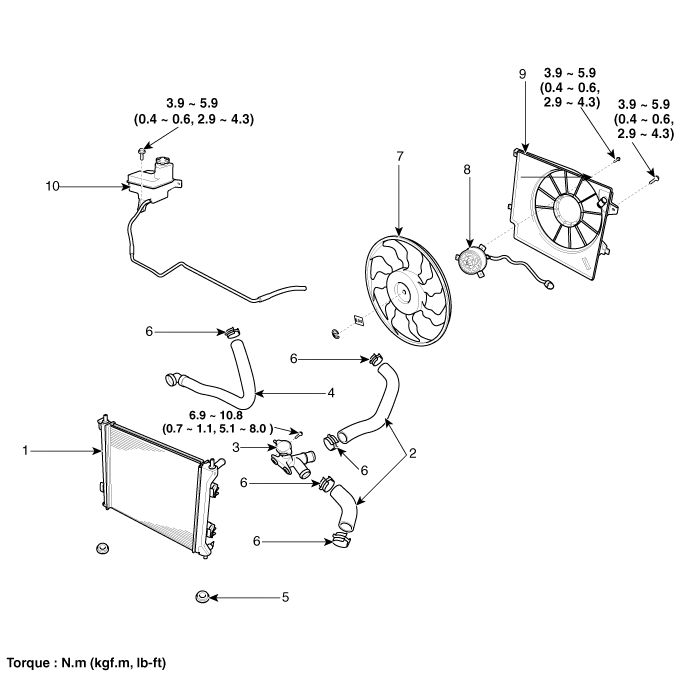

1. Radiator

2. Radiator upper hose

3. filler neck assembly

4. Radiator lower hose

5. Mounting insulator

6. Clamp

7. Cooling fan

8. Fan motor

9. Cooling fan shroud

10. Reservoir tank

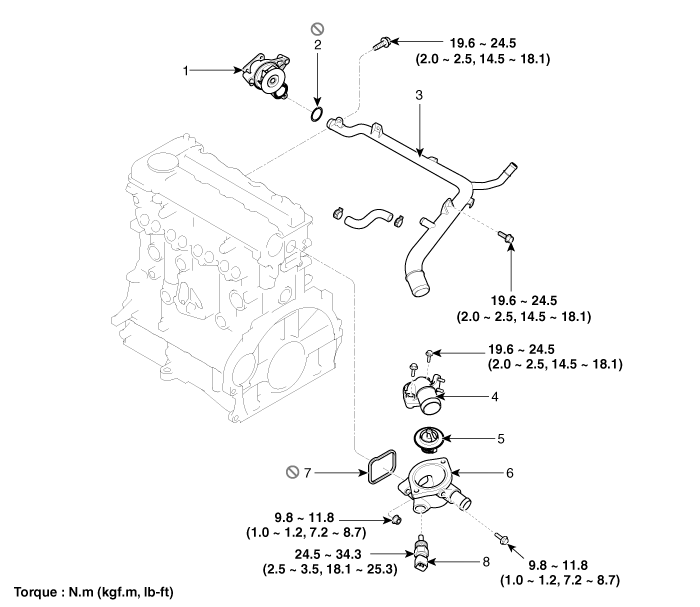

1. Water pump

2. Water pump O-ring

3. Water return pipe assembly

4. Thermostat cover

5. Thermostat assembly

6. Thermostat housing

7. Thermostat housing gasket

8. Engine coolant temperature sensor (ECTS)
