Remove the oil pan (A).

note

When removing the oil pan, use the SST(09215-3C000) in order not to damage the surface between the bedplate and the oil pan.

caution

●

Insert the SST between the oil pan and the bed plate by tapping it with a plastic hammer in the direction of ① arrow.

●

After tapping the SST with a plastic hammer along the direction of ② arrow around more than 2/3 edge of the oil pan, remove it from the bed plate.

●

Do not turn over the SST abruptly without tapping. It be result in damage of the SST.

Install the oil strainer (A).

Tightening torque

Bolts :

19.6 ~ 26.5N.m (2.0 ~ 2.7kgf.m, 14.5 ~ 19.5lb-ft)

Nuts :

9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

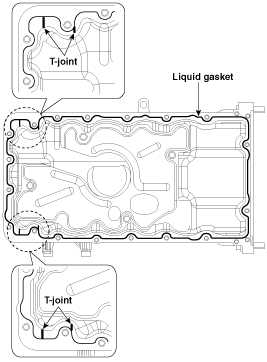

Apply liquid gasket evenly to the mating surface of oil pan.

note

●

Standard liquid gasket : LOCTITE 5900, LOCTITE 5900H, THREE BOND 1217H

●

Check that the mating surfaces are clean and dry before applying liquid gasket.

●

Apply liquid gasket in a 3mm wide bead without stopping.Assemble the oil pan in 5 minutes after applying the liquid gasket.

●

After assembly, wait at least 30 minutes before filling the engine with oil.

●

Be sure to apply liquid gasket on T-joint of oil pan.

caution

●

Be careful not to press metal gasket protruded from lower face of chain case and bedplate when applying liquid gasket and assembling the oil pan.

Install the oil pan (A).

Tightening torque :

9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)
