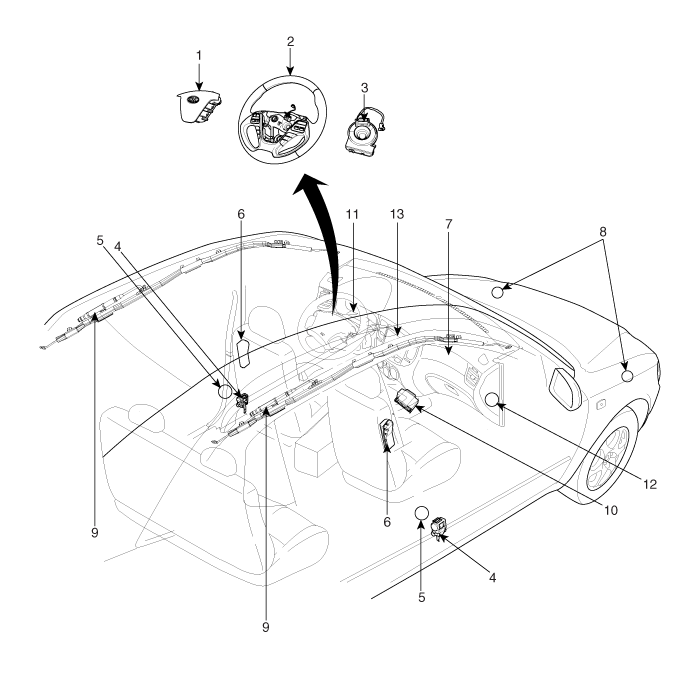

Components [LHD]

1. Driver Airbag (DAB)

2. Steering Wheel

3. Clock Spring

4. Seat Belt Pretensioner (BPT)

5. Side Impact Sensor (SIS)

6. Side Airbag (SAB)

7. Passenger Airbag (PAB)

8. Front Impact Sensor (FIS)

9. Curtain Airbag (CAB)

10. Supplemental Restraint System Control Module(SRSCM)

11. Airbag Warning Lamp

12. PAB ON/OFF switch

13. PAB ON/OFF lamp

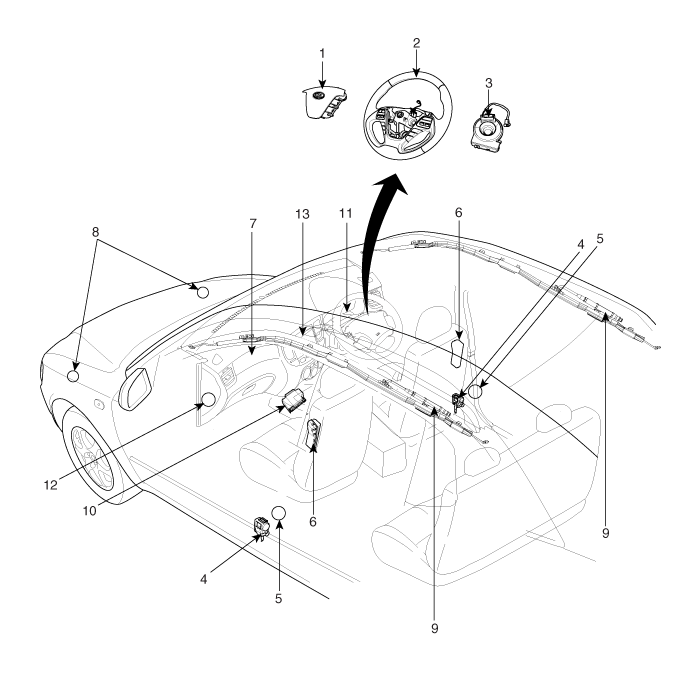

Components [RHD]

1. Driver Airbag (DAB)

2. Steering Wheel

3. Clock Spring

4. Seat Belt Pretensioner (BPT)

5. Side Impact Sensor (SIS)

6. Side Airbag (SAB)

7. Passenger Airbag (PAB)

8. Front Impact Sensor (FIS)

9. Curtain Airbag (CAB)

10. Supplemental Restraint System Control Module(SRSCM)

11. Airbag Warning Lamp

12. PAB ON/OFF switch

13. PAB ON/OFF lamp

Components Location
Supplemental Restraint System Control Module (SRSCM)

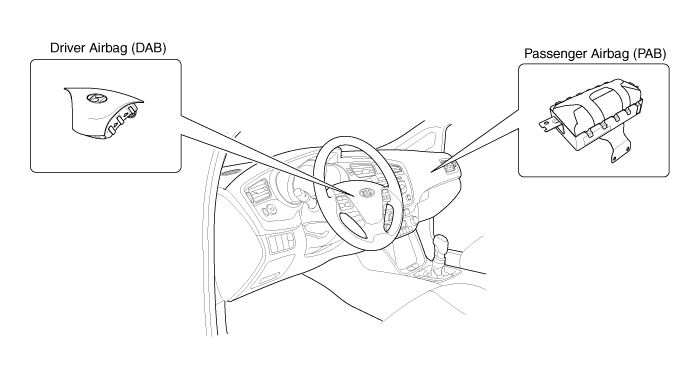

Driver Airbag (DAB) / Passenger Airbag (PAB)
Side Airbag (SAB)
Curtain Airbag (CAB)
Front Impact Sensor (FIS)

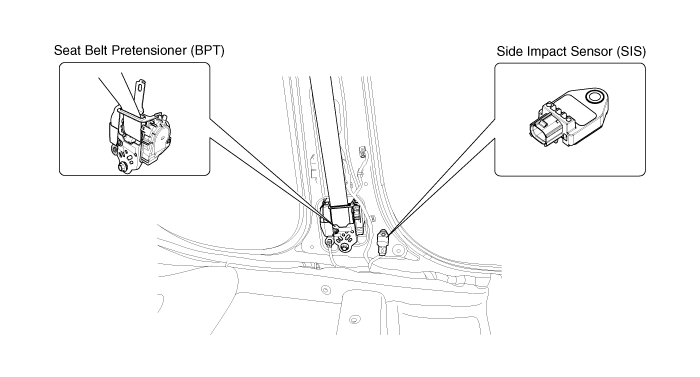

Side Impact Sensor (SIS)/ Seat Belt Pretensioner (BPT)
