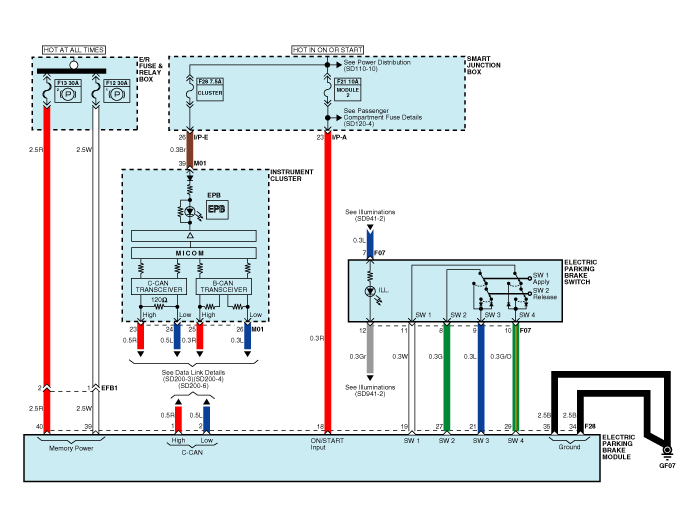

EPB Circuit Diagram (1)

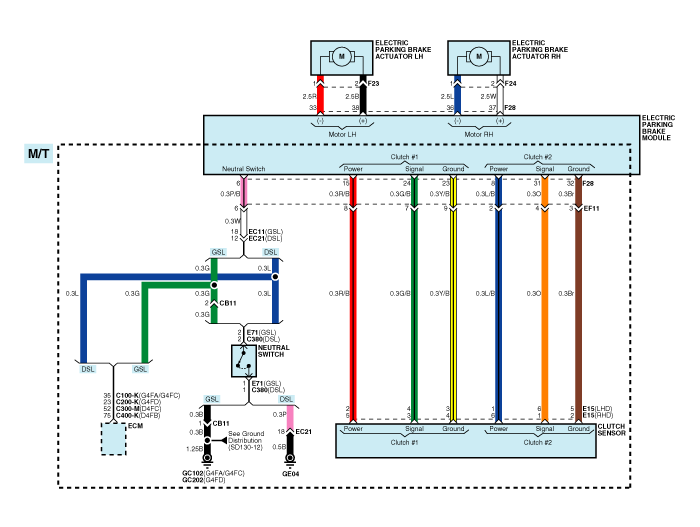

EPB Circuit Diagram (2)

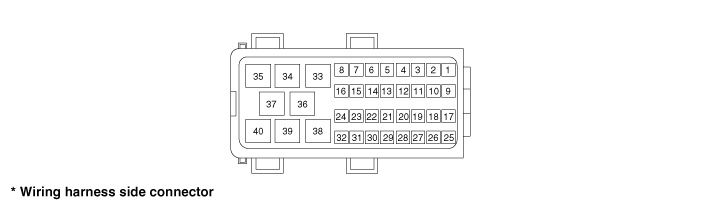

EPB connector input/output

Pin No.

Function

Pin No.

Function

1

CAN_High

21

EPB switch 3

2

CAN_Low

22

-

3

-

23

Clutch ground 1 (MT only)

4

-

24

Output signal 1 (MT only)

5

-

25

-

6

Neutral switch (MT only)

26

-

7

-

27

EPB switch 2

8

Clutch power 2

28

-

9

-

29

EPB switch 4

10

-

30

-

11

-

31

Output signal 2 (MT only)

12

-

32

Clutch ground 2 (MT only)

13

-

33

Rear left caliper motor -

14

-

34

Ground

15

Clutch power 1 (MT only)

35

Ground

16

-

36

Rear right caliper motor -

17

-

37

Rear right caliper motor +

18

Ignition 1

38

Rear left caliper motor +

19

EPB switch 1

39

Rear right motor power

20

-

40

Rear left motor power
