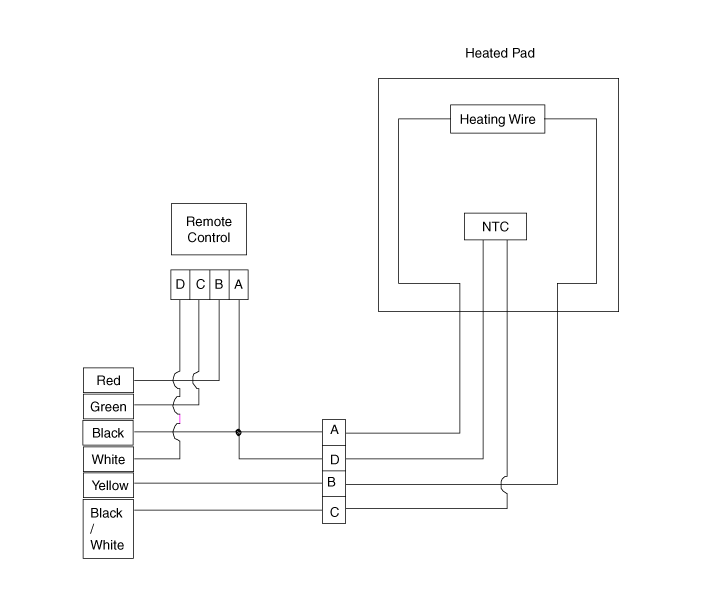

System Circuit Diagram

Terminal Function

Housing	Pin	Function	Wire color
Pad	A	GND	Back
	B	HEATER	Yellow
	C	NTC+	Back / Yellow
	D	NTC-	Back
Remote control	A	GND	Back
	B	BAT	Red
	C	LED	Green
	D	SWITCH	White
