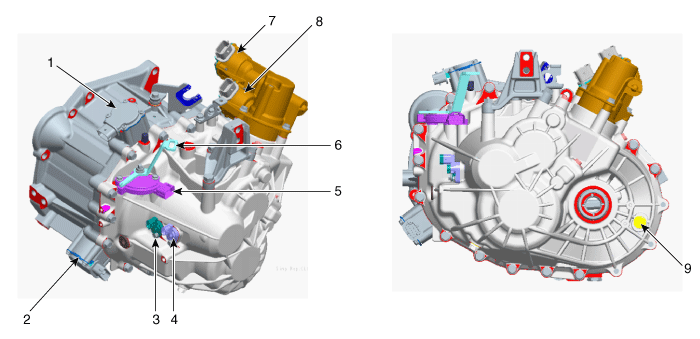

Components

1. Odd clutch actuator motor

2. Even clutch actuator motor

3. Input shaft speed sensor 2

4. Intput shaft speed sensor 1

5. Inhibitor switch

6. Manual control lever

7. Shift motor

8. Select motor

9. Filler plug

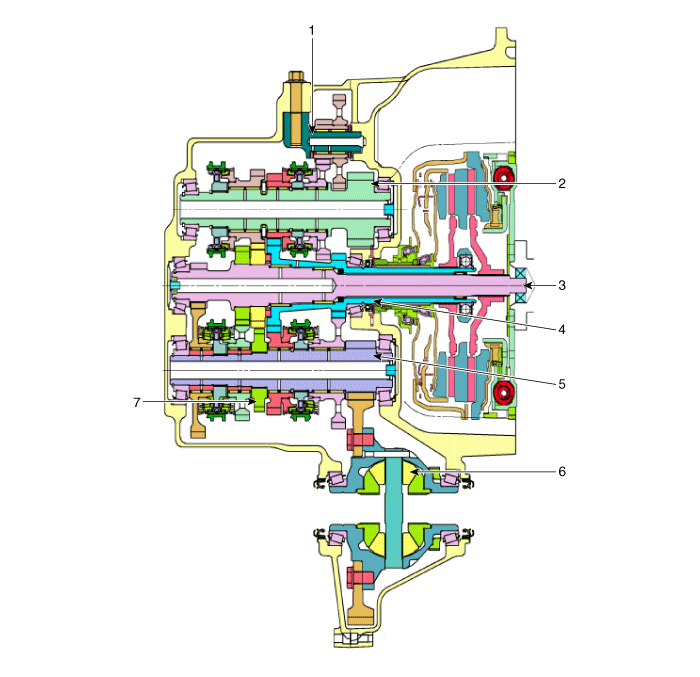

Cross Sectional Drawing

1. Reverse Idler shaft

2. 5/6/R output shaft

3. 1/3/5 input shaft

4. 2/4/6/R input shaft

5. 1/2/3/4 output shaft

6. Differential assembly

7. Parking gear
