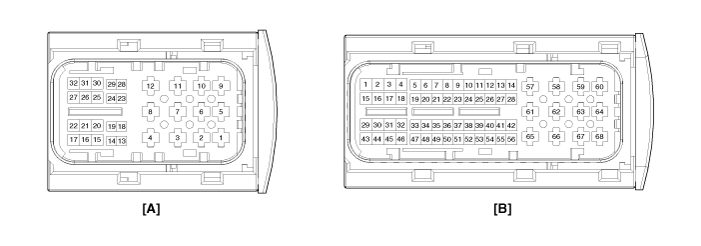

1

Select actuator

17

-

2

Clutch actuator(C2)

18

Select actuator

3

-

19

Select actuator

4

-

20

-

5

Select actuator

21

-

6

Clutch actuator(C2)

22

-

7

Ground

23

Clutch actuator(C2)

8

-

24

Clutch actuator(C2)

9

Select actuator

25

Clutch actuator(C2)

10

Clutch actuator(C2)

26

-

11

Ground

27

-

12

-

28

Clutch actuator(C2)

13

Select actuator

29

Clutch actuator(C2)

14

Select actuator

30

-

15

Select actuator

31

-

16

-

32

-

1

-

33

-

2

-

36

Sport mode switch (Up)

3

-

37

-

4

Ground

38

Input speed sensor 2

5

39

Input speed sensor 2

6

Transmission range switch "N"

40

-

7

Transmission range switch "D"

41

Clutch actuator (C1)

8

Paddle shift switch (UP)

42

Clutch actuator (C1)

9

-

43

-

10

-

44

CAN High

11

-

45

CAN Low

12

-

46

-

13

Shift actuator

47

-

14

Shift actuator

48

-

15

-

49

-

16

-

50

Sport mode switch (Select)

17

-

51

-

18

Ground

52

Input speed sensor 1

19

-

53

Input speed sensor 1

20

Transmission range switch "R"

54

Clutch actuator (C1)

21

-

55

Clutch actuator (C1)

22

Sport mode switch (Down)

56

Clutch actuator (C1)

23

Paddle shift switch (Down)

57

Ground

24

-

58

Ground

25

-

59

Clutch actuator (C1)

26

Shift actuator

60

Shift actuator

27

Shift actuator

61

-

28

Shift actuator

62

-

29

-

63

Clutch actuator (C1)

30

-

64

Shift actuator

31

-

65

-

32

-

66

-

33

-

67

Clutch actuator (C1)

34

Transmission range switch "P"

68

Shift actuator
