4.

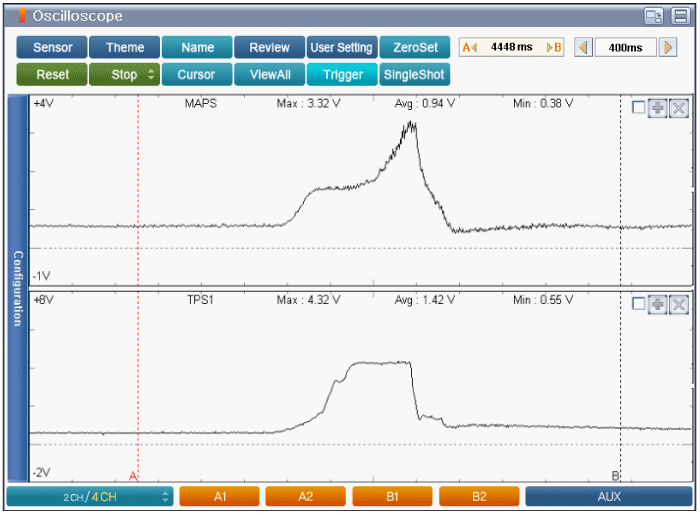

Measure signal waveform of MAPS and TPS together by stepping on and off the accelerator pedal.
Specification : Refer to Signal Waveform & Data
IG "OFF".
Connect CH A probe to signal terminal MAPS and CH B probe to signal terminal of TPS connector.
Warm up the engine to normal operating temperature.
Measure signal waveform of MAPS and TPS together by stepping on and off the accelerator pedal.
Specification : Refer to Signal Waveform & Data
Does the MAPS operate properly? (Check variation)
 | ▶ Repair as necessary and go to "Verification of vehicle Repair" procedure. |
 | ▶ Go to "Component Inspection" procedure. |
