5.
Read "DTC Status" parameter.
note
- History (Not Present) fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.
Vehicle Parked & Ignition ON.
Diagnose EPB with GDS for DTC and select "Diagnostic Trouble Codes(DTC)" mode.

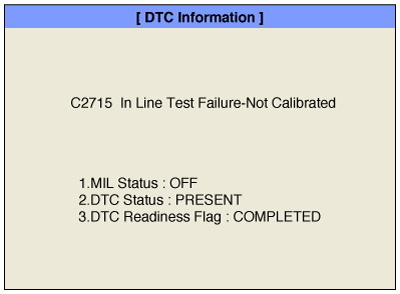

Click "DTC Status" on the DTC menu bar to see DTC's information.
Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
Read "DTC Status" parameter.
- History (Not Present) fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.
Is parameter displayed "Present fault" ?

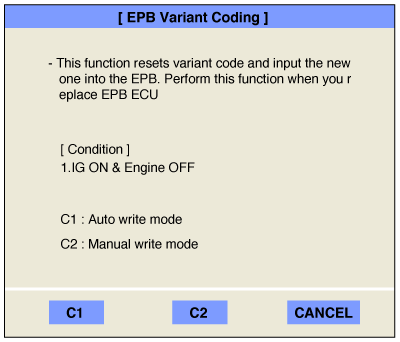

 | ▶ Select "Vehicle S/W Management" mode. ▶ Select "Option Treatment"mode and Perform EPB Variant Coding.  ▶ After vehicle variant coding, G-sensor calibration. ▶ When EPB switch is activated, check "Current Left/Right" value is changing. |
 | ▶This fault was repaired and EPB memory was not cleared. Go to "Verification of Vehicle Repair" procedure. |
