Monitor GDS Data
1.

Connect GDS to Data Link Connector(DLC).

2.

Engine "ON" and Head lamp "ON".

3.

Monitor the "CAN" parameter on the "Current Data" with GDS.

(Check the data of AFLS with PCM(ECM+TCM), ABS(ESP), EPS, SRSCM, EPB, CLU, SMK, AFLS, FATC, TPMS, YAW SENSOR system and confirm output values related to CAN communication)

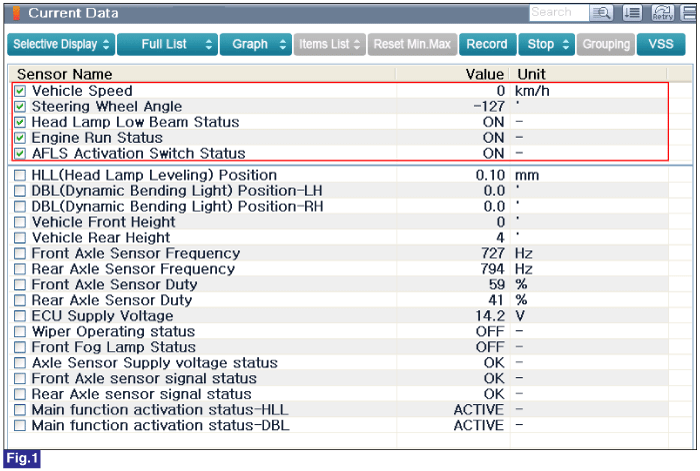

FIg.1) ENG "ON" - AFLS's current data(CAN Data)

4.

Is parameter displayed within specifications?

▶ Fault is intermittent caused by poor contact in the sensor's and/or AFLS ECU's connector or was repaired and AFLS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of vehicle Repair" procedure

▶ Go to "Inspection/Repair" procedure.
