Monitor GDS Data
1.

Connect GDS to Data Link Connector(DLC).

2.

Engine "ON".

3.

Perform "Height sensor initialization" on the "Vehicle S/W Management" with GDS.

* REFERENCE*

Perform the initializing after replace "Height sensor".

* Vehicle condition

(1)

Park at lever land

(2)

Vehicle speed ≤ 5km/h

(3)

Engine r.p.m > 500rpm

(4)

Connect GDS

(5)

CAN communication is normal status

(6)

Battery voltage > 10.5V

(7)

Headlamp S/W ON, AFLS ON

① Calibration

② Clear "DTC".

③ Confirm the Headlamp movement through the "Actuation Test".

④ Confirm the "Diagnostic Trouble Codes(DTC)" and "Current Data"

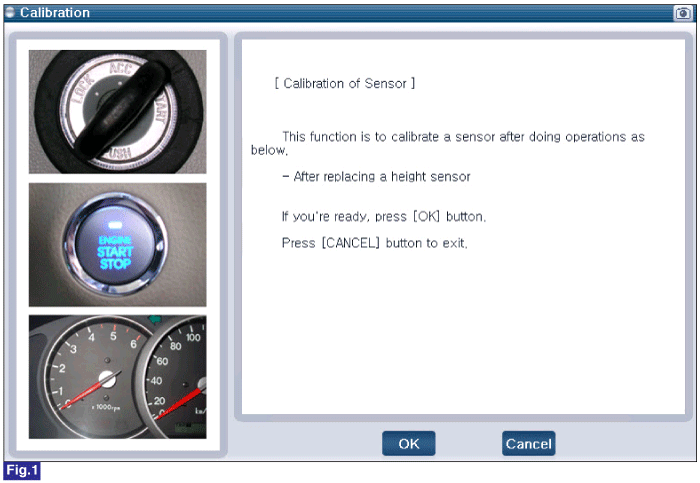

Fig.1) Calibration

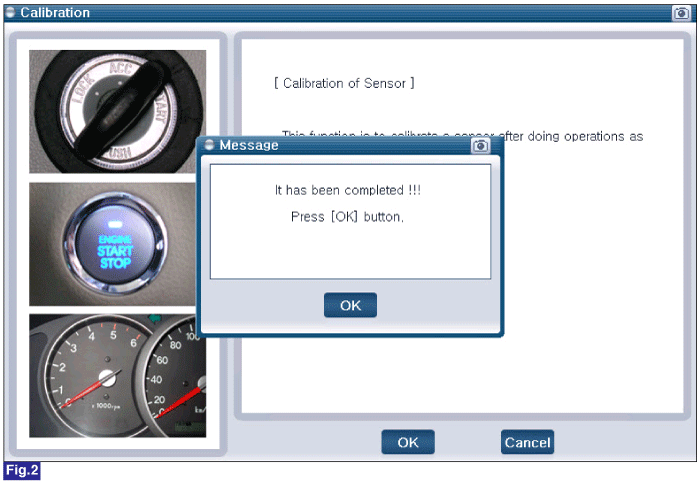

Fig.2) Parameter Download 2

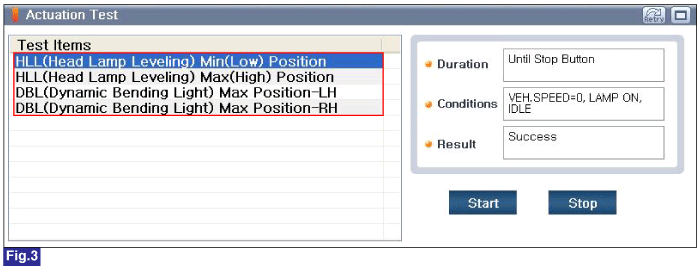

Fig.3) Actuation Test

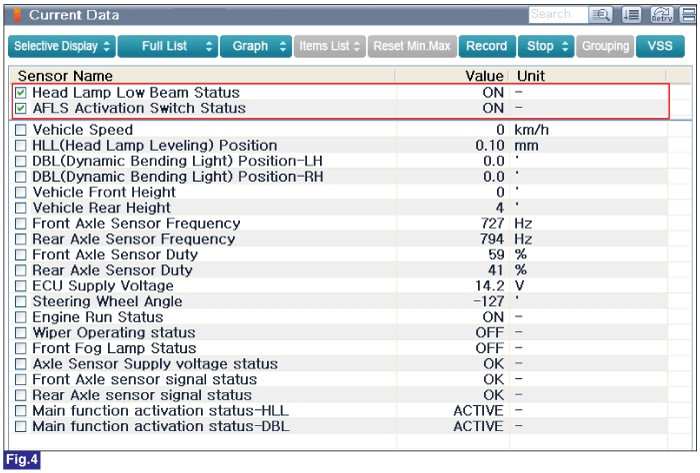

Fig.4) Engine "ON" - AFLS's current data

4.

Is parameter displayed within specifications?

▶ Go to "Verification of Vehicle Repair" procedure.

▶Substitute with a known - good AFLS ECU or height sensor and check for proper operation. If the problem is corrected, replace AFLS ECU or height sensor and go to "Verification of Vehicle Repair" procedure.
