Monitor GDS Data
1.

Connect GDS to Data Link Connector(DLC).

2.

Engine "ON"

3.

Confirm the AFLS ECU type and then Download to correct parameter" on the "Vehicle S/W Management" with GDS..

* REFERENCE*

Perform the initializing after replace "AFLS ECU".

* Vehicle condition*

1) Park at lever land

2) Vehicle speed ≤ 5km/h

3) Engine r.p.m > 500rpm

4) Connect GDS

5) CAN communication is normal status

6) Battery voltage > 10.5V

7) Headlamp S/W ON, AFLS ON

① Parameter Download

② Calibration

③ Clear "DTC"

④ Confirm the Headlamp movement through the "Actuation Test"

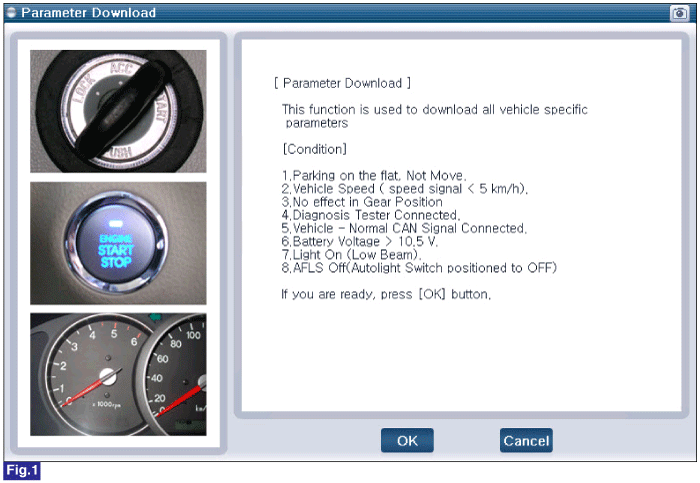

Fig.1) Parameter Download 1

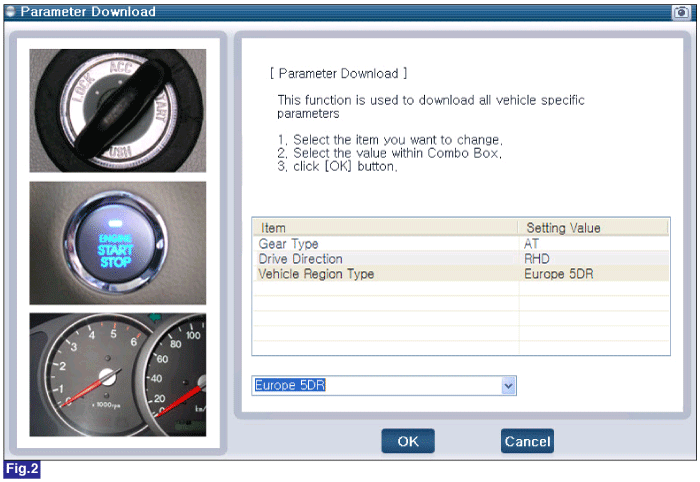

Fig.2) Parameter Download 2

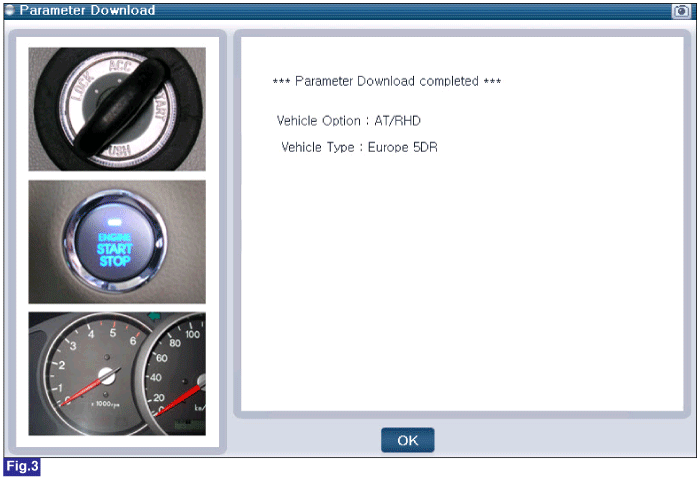

Fig.3) Completed Parameter Download

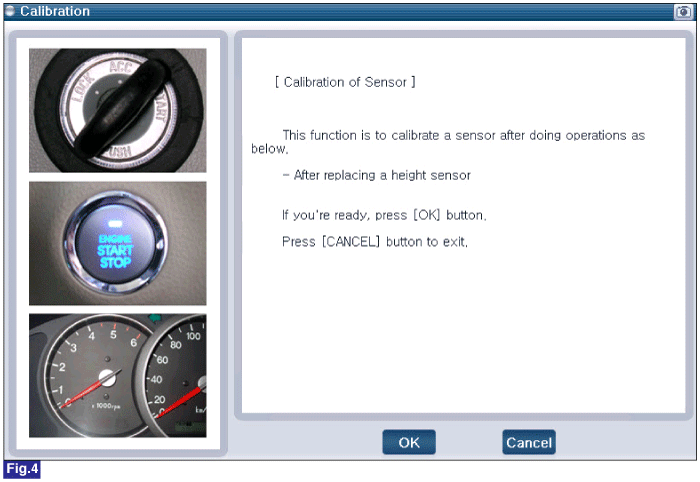

Fig.4) Calibration

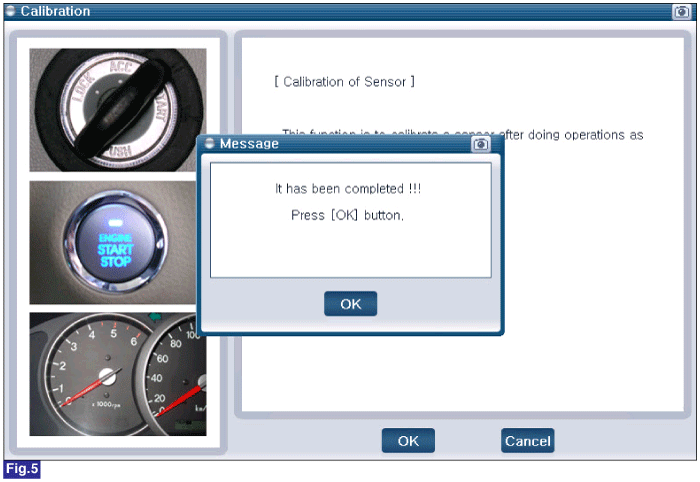

Fig.5) Completed Calibration

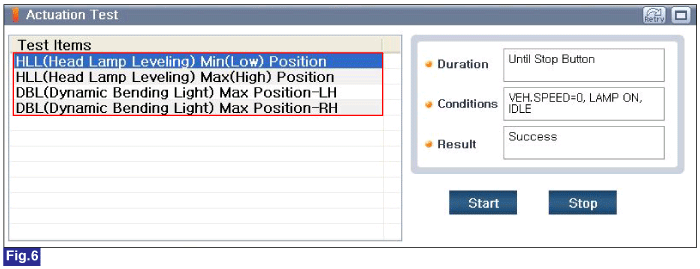

Fig.6) Actuation Test

⑤ Confirm the "Diagnostic Trouble Codes(DTC)" and "Current Data"

4.

Is parameter displayed within specifications?

▶ Go to "Verification of Vehicle Repair" procedure.

▶ Substitute with a known - good AFLS ECU and check for proper operation. If the problem is corrected, replace AFLS ECU and go to "Verification of Vehicle Repair" procedure.
