Connect GDS to data link connector(DLC), And Engine "ON".
Monitor a "Diagnostic Trouble Codes(DTC)", if there is a DTC clear it and then check the warning lamp status.
Select the "Current Data" and Monitor status of " Front / Height Height Sensor "
Specification | Specification | Duty |
600HZ ~ 1000HZ | 5 ~ 95% |

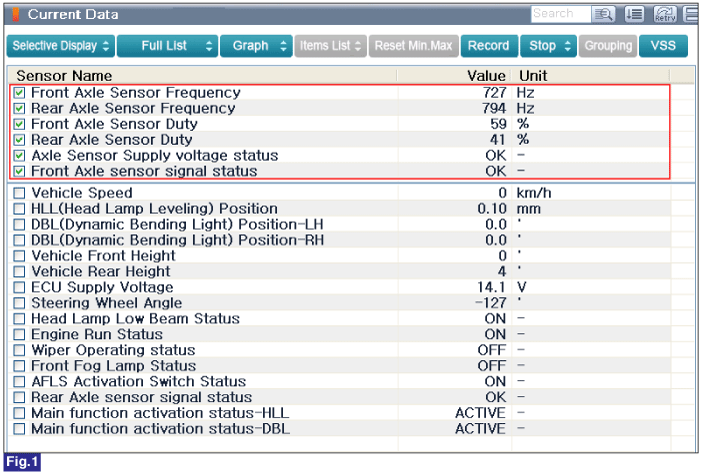

Fig.1) ENG "ON" - AFLS'S current data(Axle sensor signal)
Is the measured Current data within specifications ?
![]() | ▶ Fault is intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and AFLS ECU memory is not cleared yet. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination or damage. |
![]() | ▶ Go to "Verification of Vehicle Repair" procedure. |
