Monitor GDS Data
1.

Connect GDS to Data Link Connector(DLC).

2.

ENG "ON".

3.

Monitor the "Autolight SW, Low Beam On/Off, MT_R Gateway signal" parameter on the "Current Data" with GDS.(AFLS, BCM, Cluster'S current data)

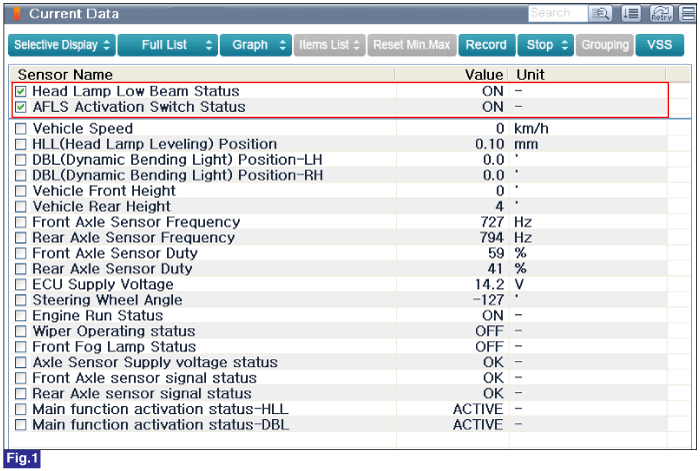

Fig.1) ENG "ON" - AFLS'S current data(Lamp function signal)

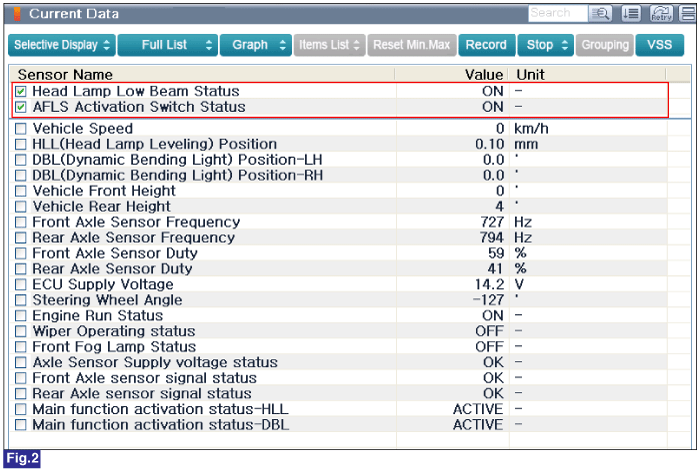

Fig.2) ENG "ON" - CLU'S current data(MT_R Gateway signal)

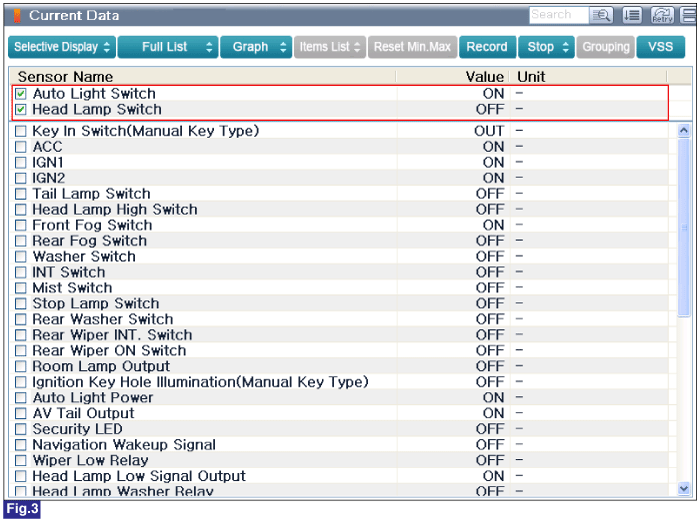

Fig.3) ENG "ON" - BCM'S current data(Lamp function signal)

4.

Is parameter displayed within specifications?

▶ Go to "Inspection/Repair" procedure.

▶ When Brake S/W output not available signal, check the Engine system and then go to "Verification of Vehicle Repair" procedure.
