5.
Monitor change of current data.

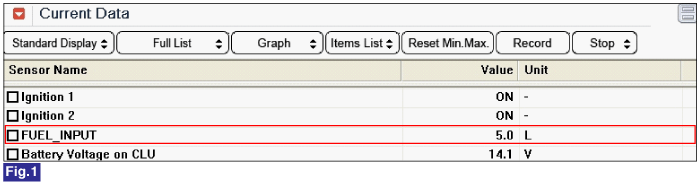

Fig.1) Normal current data
Connect GDS.
IG key "ON" and engine "OFF".
Select "Current Data" mode.
Keep the vehicle condition within "the enable conditions" (Refer to "DTC Detecting Condition" table).
Monitor change of current data.
Fig.1) Normal current data
This current data is nothing but example at certain condition. Thus, the real data could be different from this example
Is the displayed current data normal?
 | ▶ Fault is intermittent caused by poor contact in the CLU's connector or was repaired and CLU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Terminal and Connector Inspection" procedure. |
