5.
Read the "DTC Status" parameter.
note
- History (Not Present) fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.
Ignition ON & Vehicle "STOP".
Diagnose EPB with GDS for DTC and select "Diagnostic Trouble Codes(DTC)" mode.

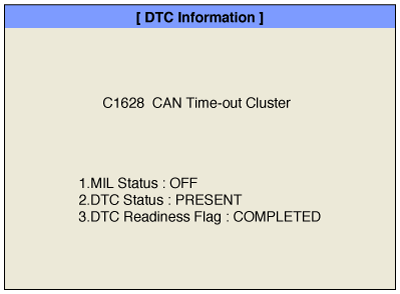

Click "DTC Status" on the DTC menu bar to see DTC's information.
Confirm that the "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in Freeze Frame Data or Enable Conditions.
Read the "DTC Status" parameter.
- History (Not Present) fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.
Is parameter displayed "Present fault" ?
 | ▶ Erase DTC C1628 & Recheck EPB system. ▶ If C1628 is still active DTC, Inspection CAN Line & diagnose Cluster(IPM)related item. |
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or Control module's connector or was repaired and Control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure. |
