1.

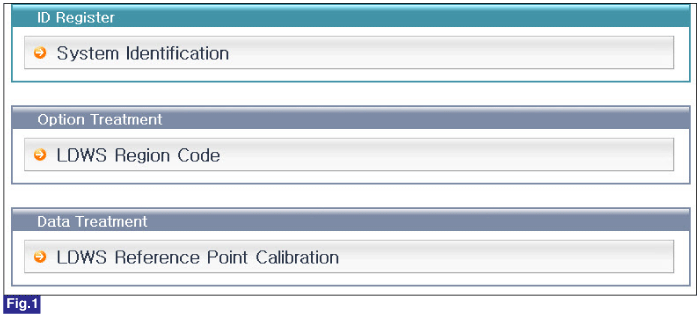

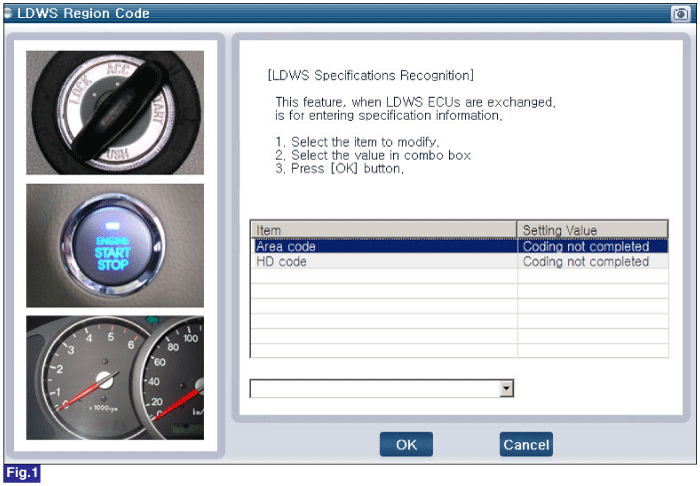

Execute LDWS Region Code by GDS. (but, JD is fixed set the European Region, is not a necessity)

2.

Using the GDS, set hand-code (LHD/RHD)

3.

Using a GDS, Check DTC present.

4.

Is parameter displayed "Present fault"?

▶ It is possible not to install the LDWS region code or hand-code.

next Go to "Verification of Vehicle Repair" procedure.

▶ Using a GDS, Check the status "LDWS Region Code" and check for proper operation.

※ In a case of install the LDWS Region code , go to "LDWS Reference Point Calibration" by GDS.

Go to "Verification of Vehicle Repair" procedure.
