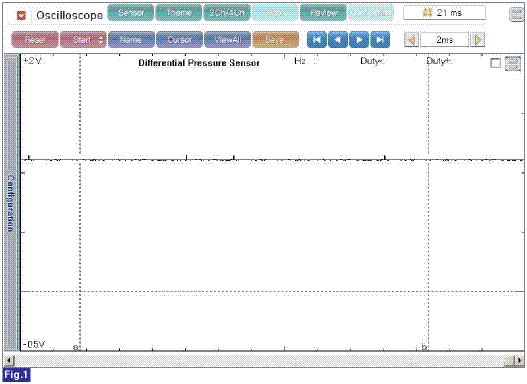

Fig.1) This is the signal waveform of DPS at idle state. When CPF is new, 1.0~1.2V is outputted normally.

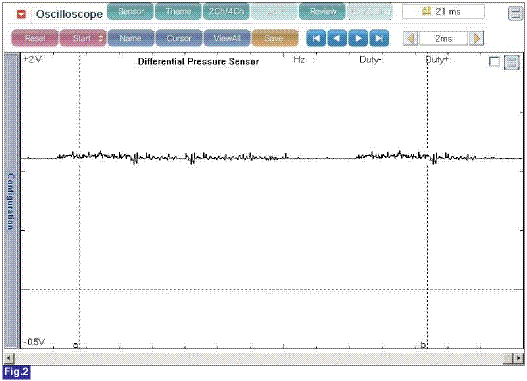

Fig.2) This is the waveform of DPS as accelerating.
As accelerating, DPS signal output voltage does not vary too much. Even when accelerator pedal is fully depressed, the signal voltage fluctuates just a little bit like "Fig. 2". However, the more CPF is used, the more waveform fluctuates.
