CPF SERVICE REGENERATION procedure.
Connect GDS to Data Link Connector (DLC).
Warm engine up to normal operating temperature.
Open the hood of vehicle.
Turn the all the electrocity (Head lamp -HIGH, Blower motor - Max speed, Defroster)and air conditioner "ON".
Perform the "CPF SERVICE REGENERATION" procedure with GDS.
Specification : CPF regeneration should be O.K when performing CPF service mode.

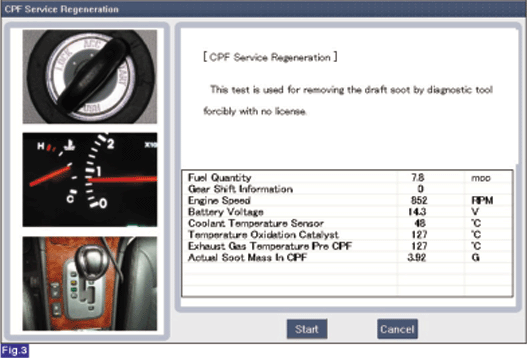

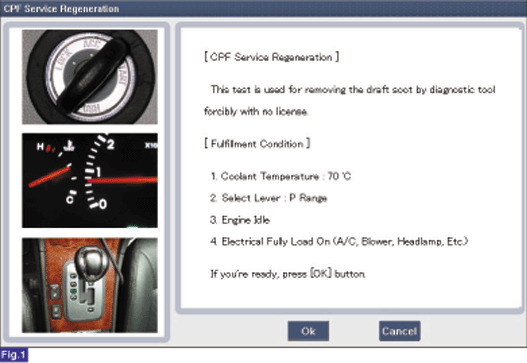

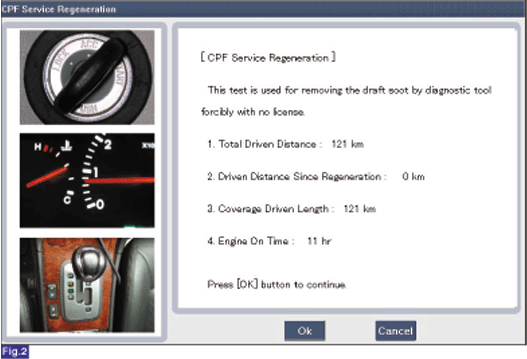

Fig.1.2.3) CPF Service Regeneration
DPF service regeneration MUST be performed outdoor due to chance of fire and injury. If DPF service regeneration mode is performed indoor, fire or burn injury may occur from the high exhaust gas temperature.
When the malfunction indicator light blinks, it may stop blingking by driving the vehicle at more than 60km/h (37 mph) or at more than second gear with 1,500~2,000 engine rpm for a certain time (for about 25 minutes).
If the engine oil measured over 28mm above maximum level of engine oil level gauge, Make replace the engine oil.
Oil Capacity
Total :5.7 L (1.51 U.S.gal., 6.02 U.S.qt., 5.01 lmp.qt.)Oil pan :4.3 L 4.8 L (1.27 U.S.gal., 5.07 U.S.qt., 4.22 lmp.qt.)Drain and refill including oil filter :5.3 L (1.40 U.S.gal., 5.60 U.S.qt., 4.66 lmp.qt.)
