Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

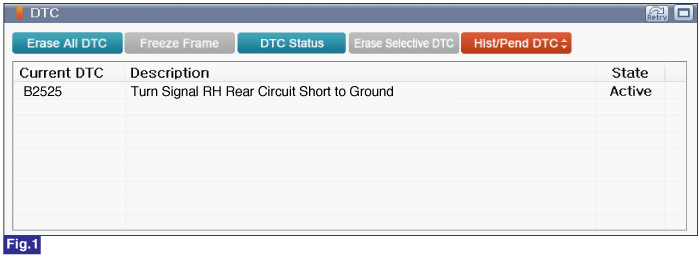

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Actuation Test" mode.

Perfom "Rear Fog Lamp Relay" in the "Actuation Test" with GDS.

Fig.1) "Rear Fog Lamp Relay" of Actuation Test

Fig.2) When the Rear Fog Lamp operates on performing Actuation Test of "Rear Fog Lamp Relay"

Is the Rear Fog Lamp operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Terminal and Connector Inspection" procedure.
