Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

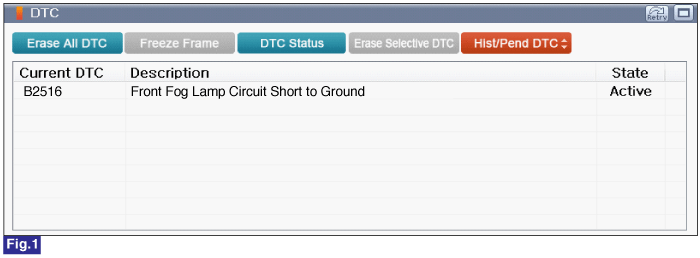

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Actuation Test" mode.

Perfom "Front Fog Lamp" in the "Actuation Test" with GDS.

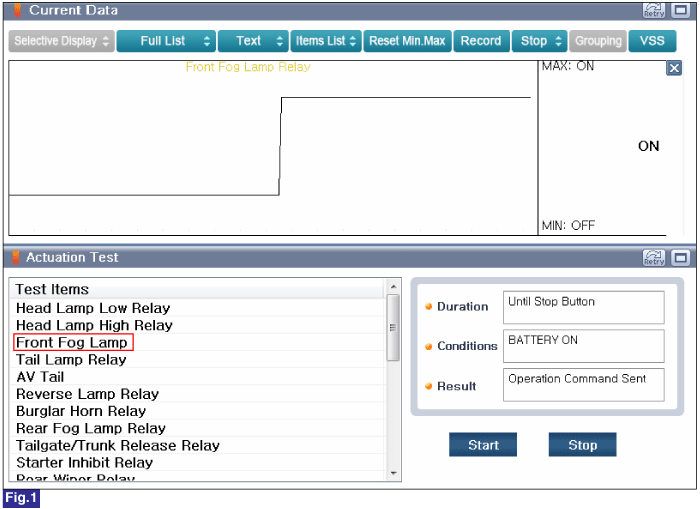

Fig.1) "Front Fog Lamp" of Actuation Test

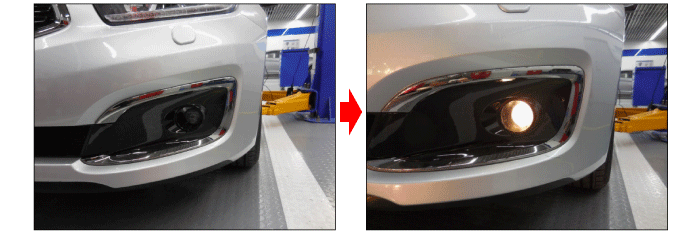

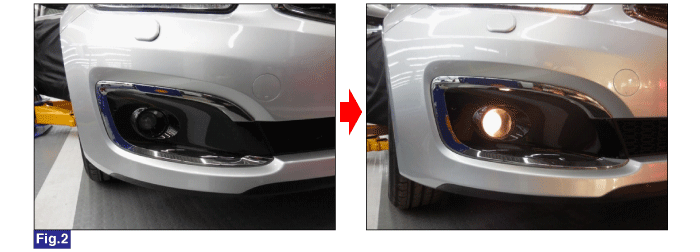

Fig.2) When the Front Fog Lamp operates on performing Actuation Test of "Front Fog Lamp"

Is the Front Fog Lamp operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Wiring Inspection" procedure.
