Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

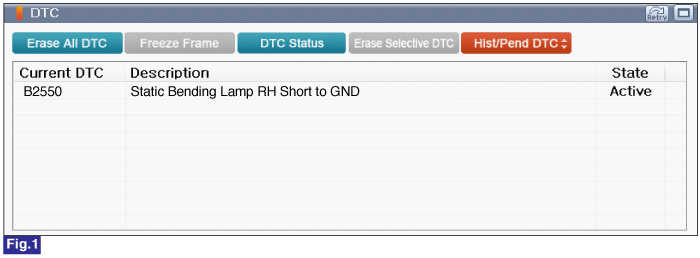

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Actuation Test" mode.

Perfom "Static Bending RH Output" in the "Actuation Test" with GDS.

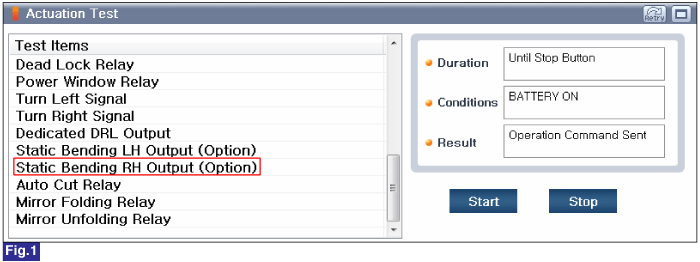

Fig.1) "Static Bending RH Output" of Actuation Test

Is the Static Bending Lamp RH operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Terminal and Connector Inspection" procedure.
