Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

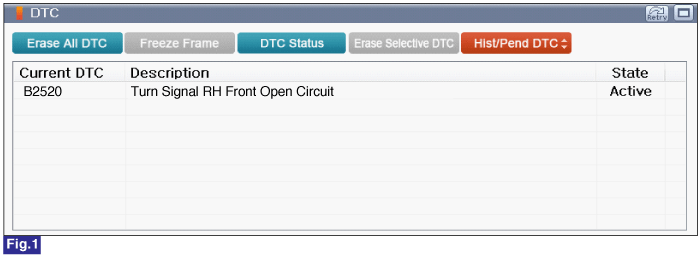

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Actuation Test" mode.

Perfom "Turn Right Signal" in the "Actuation Test" with GDS.

Fig.1) Actuation test of "Turn Right Signal"

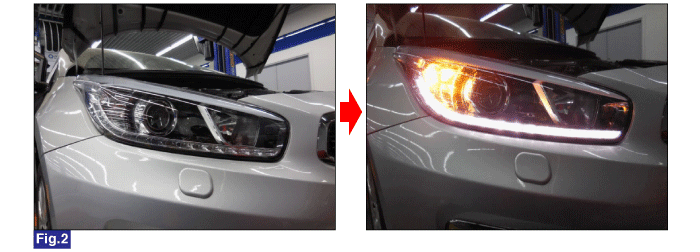

Fig.2) When the Front RH Turn Signal Lamp operates on performing Actuation Test of "Turn Right Signal"

Is the Front Turn Signal Lamp operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Wiring Inspection" procedure.
