Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

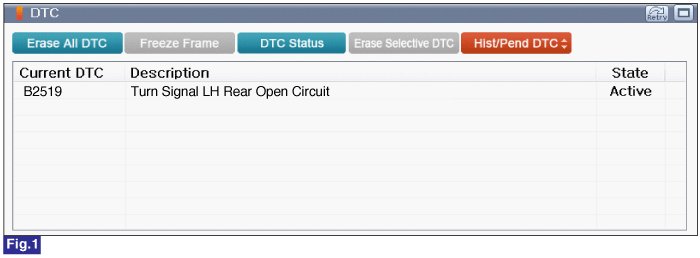

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Actuation Test" mode.

Perfom "Turn Left Signal" in the "Actuation Test" with GDS.

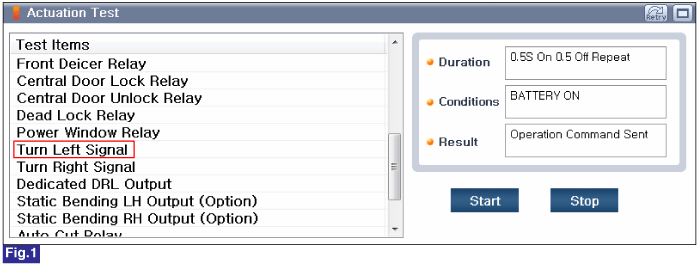

Fig.1) Actuation test of "Turn Left Signal"

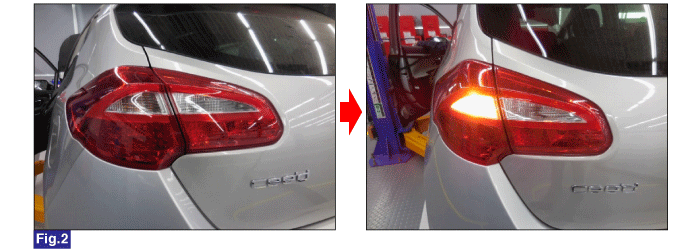

Fig.2) When the Rear LH Turn Signal Lamp operates on performing Actuation Test of "Turn Left Signal"

Is the Rear Turn Signal Lamp operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Wiring Inspection" procedure.
