Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

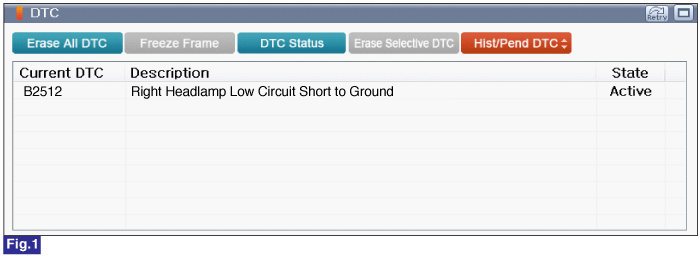

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Actuation Test" mode.

Perfom "Head Lamp Low Relay" in the "Actuation Test" with GDS.

Fig.1) "Head Lamp Low Relay" of Actuation Test

Fig.2) When the Head Lamp Low operates on performing Actuation Test of "Head Lamp Low Relay"

Is the RH head lamp low operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Wiring Inspection" procedure.
