Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

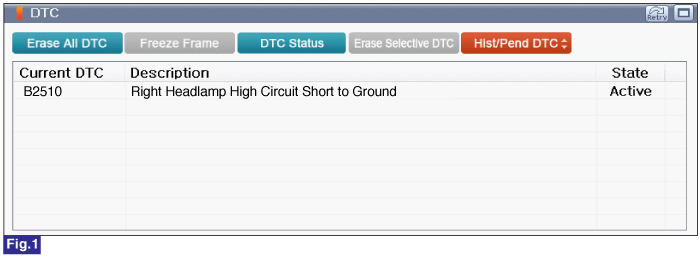

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Actuation Test" mode.

Perfom "Head Lamp High Relay" in the "Actuation Test" with GDS.

Fig.1) "Head Lamp High Relay" of Actuation Test

Fig.2) When the Head Lamp High operates on performing Actuation Test of "Head Lamp High Relay"

Is the RH head lamp high operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Wiring Inspection" procedure.
